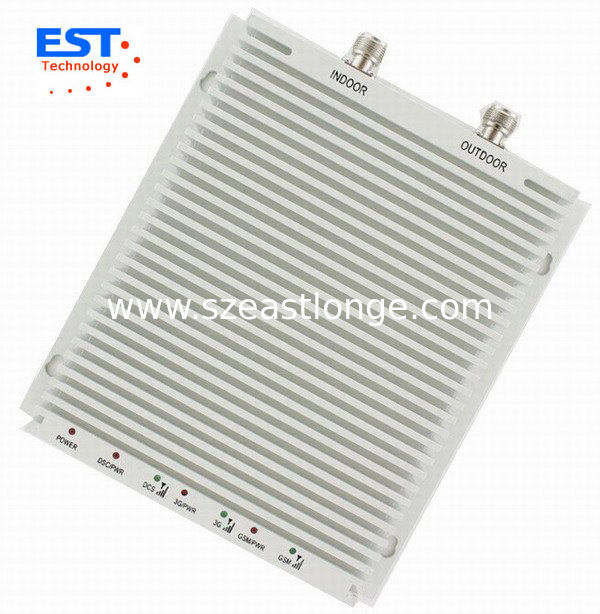

Detailed Product Description
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
|
Introduction To Mobile Phone Signal Repeater
|
|
1. Enhance Mobile Phone
Signal Strength
|
|
2. Improve
Communication
Quality
|
|
3. Reduce
Cellphone
Radiation
|
|
4. Protract
Cellular Battery Life
|
|
5. Economic Building Cost
|
|
6. Easy Operation
|
|
7. Easy Installation
|
|
8. Build-in Power Supply
|
The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal. A mobile phone repeater could also improve indoor ctromagnetism environments, protract cellular battery life and reduce radiation of cellphones.
|
2. Features
|
|
High gain, easy installation and operation.
|
|
Full-duplex, single-port design, build-in power supply.
|
|
Use ALC technology, adjust extent automatically
|
|
LED Light Working & Signal Condition Indicators
|
|
Big linear power, control intermodulation & scatteration stably
|
|
Dependability stand by GB6993-86 standard
|
|
Compatibility of electromagnetism according with ETS300 609-4
|
|
CE and RoHs Approved
|
Technique
|
Frequency range
|
Uplink890-915MHz 1710-1785MHz
1920-1990MHZ
Downlink935-960MHz 1805-1880MHz
2110-2180MHZ
|
|
Gain ( dB)
|
Uplink Gp≥55 Downlink Gp≥60
|
|
Export power (Po)
|
≥17dBm
|
|
Pass band ripple
|
≤3dB
|
|
I/O impedance
|
50Ω/N connector
|
|
Noise figure
|
≤4dB
|
|
Transmission Delay
|
≤0.5μs
|
|
Ambient temperature
|
-10℃～60℃
|
|
Power supply
|
AC110～240V 45～55Hz
|
|
Size
|
220 x180 x 20 mm
|
|
Reliability
|
To the GB6993-86 standard
|
|
Electromagnetic
compatibility
|
To the ETS300 694-4 standard
|
|
Function
|
a) Power supply LED denote
b) Export power LED denote
|
|
coverage area
|
200 m2
|

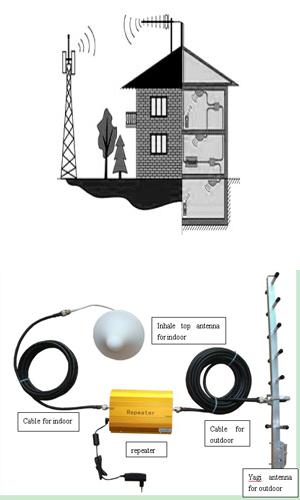

SpecificationsInstallation Sketch Map
Installation Approaches
-
Fix up outdoor antenna reception on housetop and point to signal tower.
-
Connect outdoor antenna to “outdoor” port in repeater machine through cable.
-
Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
-
Plug power adaptor into AC power socket and finish installation.
Technique Supporting
-
If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
-
If can not call out, please adjust the direction of outdoor antenna.
If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antenna have distance of 20
Accessories
SelectionOutdoor antenna use 7 unit yagi type antenna, indoor antenna use board or rooftop antenna and signal wire use coaxial-cable.
Packing list
Main unit 1pc
Power supply 1pc
User manual 1pc
