Indoor Antenna GSM Signal Booster / Repeater / Amplifier For Mobile Phone

Place of Origin China
Brand Name EST
Certification CE&ROHS
Model Number EST-GSM980
Minimum Order Quantity 1PC
Packaging Details neutral packing
Delivery Time 1-3 working days
Payment Terms 100% before shipment
Supply Ability 500pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name GSM Signal Booster Frequency Range Uplink:890—915MHZ Downlink 935-960MHz
Export Power (Po) ≥23dBm Pass Band Ripple ≤3dB
Size 220 X 140 X 40 Mm Power Supply AC110~240V 45~55Hz
Coverage Area 2000 M2
High Light

mobile phone signal repeater

,

GSM Signal Repeater

Leave a Message
Product Description

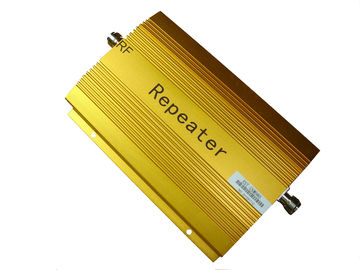

 Indoor Antenna GSM Signal Booster / Repeater / Amplifier For Mobile Phone





A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals.  The repeater device features easy installation & operation, build-in indoor antenna and no interference.  It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones.  A mobile phone repeater is ideal for house, home, office use.



Introduction To Mobile Phone Signal Repeater

1. Enhance Mobile Phone
Signal Strength

2. Improve
Communication
Quality

3. Reduce
Cellphone
Radiation

4. Protract
Cellular Battery Life

5. Economic Building Cost

        6. Easy Operation

        7. Easy Installation

        8. Build-in Power Supply

The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal.  A mobile phone repeater could also improve indoor ctromagnetism environments, protract cellular battery life and reduce radiation of cellphones.



2. Features

High gain,  easy installation and operation.

Full-duplex,  single-port design,  build-in power supply.

Use ALC technology,  adjust extent automatically

LED Light Working & Signal Condition Indicators

Big linear power,  control intermodulation & scatteration stably

Dependability stand by GB6993-86 standard

Compatibility of electromagnetism according with ETS300 609-4

CE and RoHs Approved



Technique



Frequency range

Uplink:890—915MHZ

Downlink 935-960MHz

Gain ( dB)

Uplink  Gp≥65 Downlink   Gp≥70

Export power (Po)

≥27dBm

Pass band ripple

≤3dB

I/O impedance

50Ω/N connector

Noise figure

≤4dB

Transmission Delay

≤0.5μs

Ambient temperature

-10℃~60℃

Power supply

AC110~240V  45~55Hz

Size

220 x 140 x 40 mm

Reliability

To the GB6993-86 standard

Electromagnetic

compatibility

To the ETS300 694-4 standard



Function

a) Power supply LED denote

b) Export power LED denote

coverage  area

2000 m2





Specification sInstallation Sketch Map



Indoor Antenna GSM Signal Booster / Repeater / Amplifier For Mobile Phone 0

Installation Approaches

  1. Fix up outdoor antenna reception on housetop and point to signal tower.
  2. Connect outdoor antenna to “outdoor” port in repeater machine through cable.
  3. Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
  4. Plug power adaptor into AC power socket and finish installation.

Technique Supporting

  1. If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
  2. If can not call out, please adjust the direction of outdoor antenna.
  3. If strength is not steady, please check if outdoor & indoor antennas are too close.  Please ensure the outdoor and indoor antenna have distance of 20

Accessories
SelectionOutdoor antenna use 7 unit yagi type antenna, indoor antenna use board or rooftop antenna and signal wire use coaxial-cable.

Packing list
Main unit            1pc
Power supply     1pc
User manual      1pc
