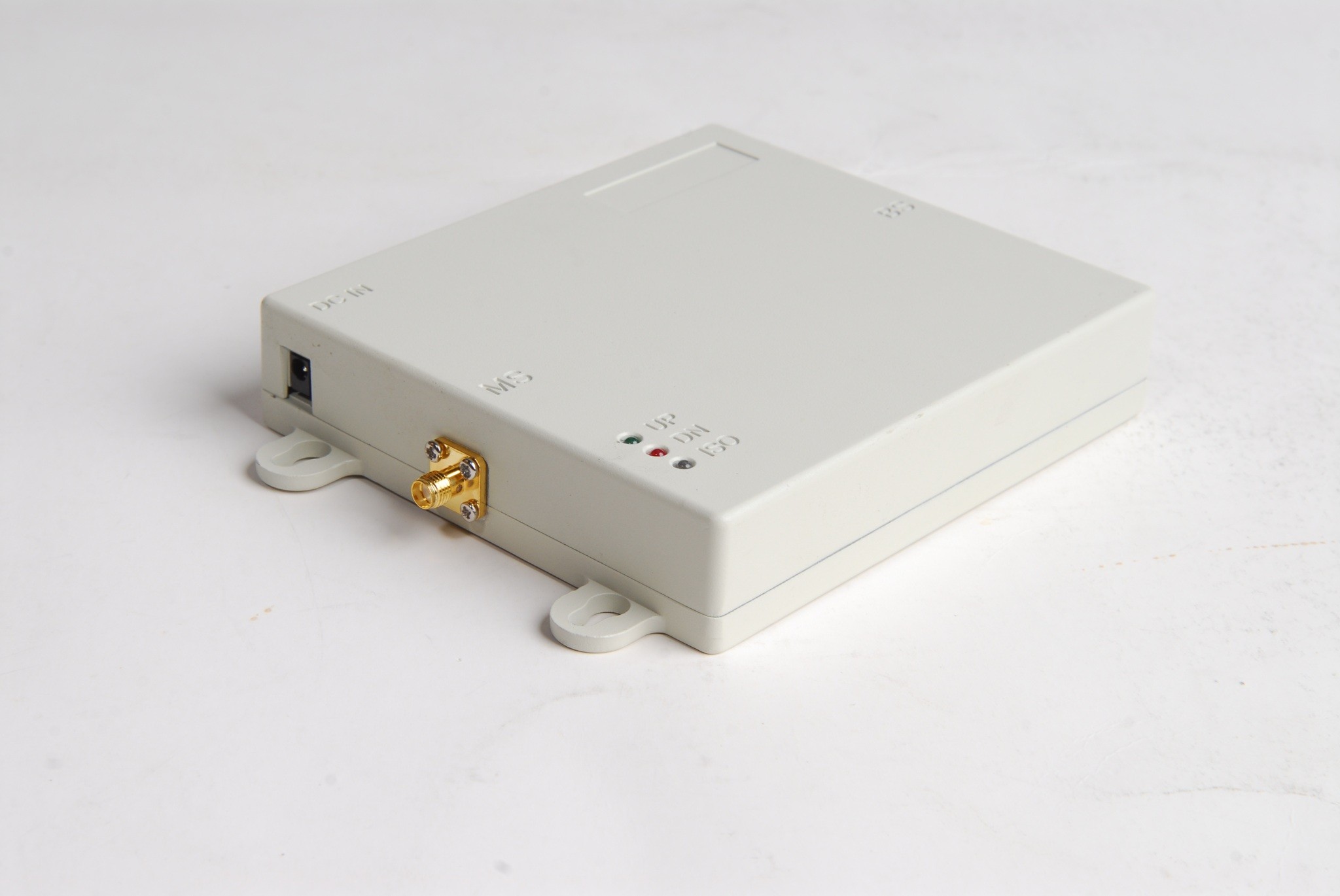

Micropower Cell Phone Signal Repeater AGC / AGC CDMA 800MHz , SMA Connector
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cell Phone Signal Repeater | Frequency Range | Uplink:824—849MHZ Downlink 869-894MHz |
|---|---|---|---|
| Export Power (Po) | ≥27dBm | Pass Band Ripple | ≤4.0dB |
| Connector | SMA | Coverage Area | 50sqm |
| High Light | Cell Phone Signal Amplifier,GSM Signal Repeater |
||
Product Description
Micropower Cell Phone Signal Repeater AGC / AGC CDMA 800MHz , SMA Connector
1.Quick Details:
frequency:uplink:824-849MHz downlink:869-894MHz
coverage:50sqm
connector:SMA
2.Applications
This product is mainly used for indoor small coverage. It is widely used in car parking, business centers, entertainments, car and boats et3.Technology index
|
model |
color |
frequency |
||
|
uplink |
downlink |
|||
|
G900-65-10-O |
off-white |
824-849MHz |
869-894MHz |
|
|
Electrical items |
index |
|||
|
max gain |
65±3dB |
|||
|
uplink output power |
≥10,17dBm |
|||
|
Downlink output power |
≥10,17dBm |
|||
|
Noise figure (Max gain) |
≤5.0dB |
|||
|
Pass band ripple |
≤4.0dB |
|||
|
ALC/AGC (range) |
≥30dB |
|||
|
Intermediation attenuation
|
Output 10dBm≤-50dBc |
|||
|
Output 17dB≤-45dBc |
||||
|
Output 20dBm≤-40dBc |
||||
|
Output 23dBm≤-36dBc |
||||
|
Max input power |
≤-25dBm |
|||
|
Spurious Emission is 2.5MHz away from working band edge
|
9kHz～150kHz |
≤-36dBm @1kHz |
||
|
150kHz～30MHz |
≤-36dBm @10kHz |
|||
|
30MHz～1GHz |
≤-36dBm @100kHz |
|||
|
1GHz～12.75GHz |
≤-36dBm @1MHz |
|||
|
transmission delay |
≤1.0μs |
|||
|
Indicator lights |
ISO(white and blue light):isolation indicator |
|||
|
DN (Red):downlink working indicator |
||||
|
UP (green):uplink working indicator |
||||
|
Working voltage |
DC 5.0V |
|||
|
working current |
≤1.5A |
|||
|
Power adaptor |
AC 100～240V,50/60Hz |
|||
|
Ambient temperature |
-5℃～+45℃ |
|||
|
relative humidity |
≤85% |
|||
|
structural items
|
index |
|||
|
RF connector |
SMA-F |
|||
|
Power port |
KLD-40-17 |
|||
|
Dimensions |
150×115×27mm |
|||
|
weight |
≤0.5Kg |
|||
4. Features and function
● testing the isolation of outdoor and indoor antenna
● Automatic adjustment (AGC) big coverage
● High-speed figure ALC
● output power indication
● automatically be standby without calls.
●automatically shut off of uplink and downlink once self-excitation.
● Clearance noise function of uplink and no interference to base station
● Uplink and downlink gain automatic balance;
●Small size, light weight, beautiful appearance, high gain and low power dissipation.
● Low noise amplifying, improving communication quality and reduction of dropped calls;
●Good aluminum shell shield, greatly improving the anti-interference ability.
● Easy installation and operation
