Portable Gun Drone UAV Jammer 900MHz 1.5G 2.4G 5.8G 1000m Blocking

Place of Origin Guangdong, China
Brand Name EST
Certification CE, RoHS
Model Number UAV420Pro
Minimum Order Quantity 1 piece
Packaging Details 1 pcs gift box for one device, neutral packing
Delivery Time 5-10 working days after received the full payment
Payment Terms Paypal, Western Union, T/T
Supply Ability 10000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Portable Gun Stype Drone UAV Blocker Antenna Built-in High Gain Directional Antennas(Gain: 10dBi)
Block Signal 900MHz 1575 MHz 2400 MHz 5800MHz Transmit Power Single Band 10-15W, Total 50W
Shielding Distance 800-1000m Operation Method Switch On, Then Keep Aiming At The Drone, Then The Drone Will Land Or Return Home(according To The Drone Setting Program.)
High Light

Portable Gun Drone UAV Jammer

,

1000m Drone UAV Jammer

,

900MHz UAV Signal Jammer

Leave a Message
Product Description

1KM Drone jammer UAV420Pro.pdf
2021 Latest Upgraded Version Best Selling 4 Channels Portable Drone Jammer UAV Interceptor



Portable light drone jammer UAV420Pro, Built-in high gain directional antenna, Built-in 4 sets of independently operated RF working unit, can be choose to on/off GPS to drive the drone or force the drone to land, can be transmit shielding interference signals to the surrounding 45 degree angle, Coverage (800-1000) m can be comprehensive and stable uninterrupted shielding of the 900MHz, GPS, 2.4G and 5.8G bands in the UAV frequency band, The data transmission of all target frequency bands within the range can be terminated within a few seconds after the device is started. The exterior of the product is a high-strength nylon casing, the casing does not deform within 150℃, sturdy and durable. The shielding effect is stable and reliable, Small size, Easy to store and transport.

Application scenario: meeting room, office, workshop, classroom, examination room, parking lot.

1. Technology

Type: anti-drone device / portable drone jammer / handheld civilian drone interceptor
Material: High-strength ABS
Antenna: Built-in high gain directional antennas(Gain: 10dBi)

Frequency Band & Output Power(can be customized):
CH1(2.4G WiFi): 2400-2500MHz--------------------------- 42dBm / 15W;
CH2(5.8G WiFi) 5715-5860MHz---------------------------- 40dBm / 10W;
CH3(GPS L1): 1550-1630MHz------------------------------- 40dBm / 10W;
CH4(RC868/915, optional): 868-915MHz------------------ 42dBm / 15W;

Shielding Distance: ≥1000 m
Built-in removable 29.5V/6000mAh lithium battery, can continuously work for 1-2 hours on a full charge
Power Supply(Charger): AC / DC adapter(Input: AC100V-240V; Output: DC28V/6.2A) / DC29.5V/5A external
emergency power.
Operation Method: switch on, then keep aiming at the drone, then the drone will land or return home (according
to the drone setting program).

Product Size: 435*200*75 mm
Product Weight: 3.5kg(including battery)
Environment temperature(-20 ~ +55)℃
Relative humidity: ≤85 %RH



Product Name:
2021 Latest Upgraded Version Best Selling 3/4-channel Portable Drone Jammer UAV
Interceptor
Model No.:
UAV420Pro
Color:
Matt Black
Material:
High-strength ABS
Antenna:
Built-in directional antenna
Total Output Power:
35W / 50W (optional 3/4 Channels)
Shielding Distance:
≥1000 m
Battery Type:
Built-in removable 29.5V/6000mAh lithium battery, can continuously work for 1-2 hours
on a full charge(3 channels)
Power Supply(Charger):
AC charger(Input: AC100V-240V; Output: DC28V/6.2A), or DC29.5V/5A external
emergency power;

Intercept Way

(Working Principle)



It can interfere with the flight of drone by emitting multi-band high-power

electromagnetic waves, which can intercept the drone control signals within

a range of 1200 meters, forcing the drone to land or return home.



Operation Method:



Switch on, then keep aiming at the drone, then the drone will land or return

home(according to the drone setting program.)



Product Size:
435*200*75 mm
Package Size:
580*420*230 mm
Product Weight:
3.5kg (including battery)
Working Temperature:
-40℃ ~ +55℃
Relative Humility:
≤90%(RH)
Air Pressure:
86~106kPa
Safety Regulation:
AC Adapter UL (E190582) / CSA (LR112971 Level 3)



2. Features



1.GPS can be switched on and off to meet the drive and force the drone to land.

Portable Gun Drone UAV Jammer 900MHz 1.5G 2.4G 5.8G 1000m Blocking 0

2.It can work continuously in a variety of complex environments, when the equipment fully charged, can working for more than 50 minutes.

Portable Gun Drone UAV Jammer 900MHz 1.5G 2.4G 5.8G 1000m Blocking 1

3.Smart chip, shielding all kinds of wireless signals.

Portable Gun Drone UAV Jammer 900MHz 1.5G 2.4G 5.8G 1000m Blocking 2

4.The display can choose to display the power and voltage, and the customer can switch according to their requirements.

Portable Gun Drone UAV Jammer 900MHz 1.5G 2.4G 5.8G 1000m Blocking 3

5.High-gain antenna, the jamming range is farther, the shielding effect is better, and the built-in antenna is neat and tidy.

Portable Gun Drone UAV Jammer 900MHz 1.5G 2.4G 5.8G 1000m Blocking 4

6.High-strength plastic material, good wear resistance, good ventilation and ventilation effect.

Portable Gun Drone UAV Jammer 900MHz 1.5G 2.4G 5.8G 1000m Blocking 5

7.Built-in high-power fan, good heat dissipation and more stable working performance.

3. Application Place

*Big event, major sports event, concert, large gathering, border patrol, airport, army, counter-terrorism unit, SWAT,
detention center, power plant, gas station, oil refinery, mining area, sensitive facility, private territory, president
selection, speech, etc.

*Other places where flying civilian drones(eg. DJI drones) is prohibited such as critical infrastructure, government,
military, finance, security, police and command center.



4. Packing List

1). Portable drone jammer main unit-----------------------1 piece

2). Battery---------------------------------------------------------1 piece

3). Power cord----------------------------------------------------1 piece
4). Power adapter------------------------------------------------1 piece

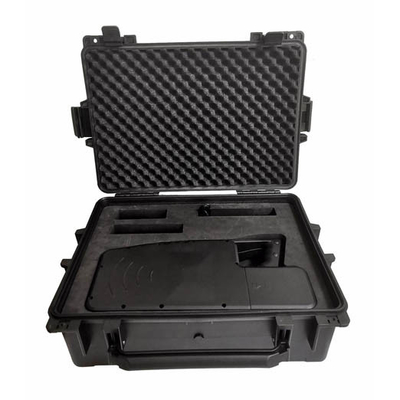

5). PP suitcase ---------------------------------------------------1 piece
6). User manual --------------------------------------------------1 piece

7). Warranty card-------------------------------------------------1 piece



5. Product Photos

Portable Gun Drone UAV Jammer 900MHz 1.5G 2.4G 5.8G 1000m Blocking 6

Portable Gun Drone UAV Jammer 900MHz 1.5G 2.4G 5.8G 1000m Blocking 7


For more details, please contact me via whatsapp +86 134 1856 8064 or email address amy@szeastlonge.com / alina1013@foxmail.com, welcome your inquiries, OEM is acceptable, thank you!
