Product Details:
Payment & Shipping Terms:
|
| High Light: | Cell Phone Signal Amplifier,GSM Signal Repeater |
||
|---|---|---|---|

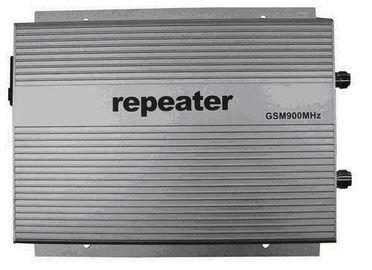

Full-duplex cellphone GSM Signal Booster For Home , office EST-GSM990
Quick Details,
frequency:900MHz
gain:33dB
coverage:5000sqm
power supply: it is built-in power supply
power:DC12V
connector:N connector
Specification
|
Frequency range |
Uplink 890-915MHZ Downlink 935-960MHZ |
|
Gain ( dB) |
Uplink Gp≥70 |
|
|
Downlink Gp≥75 |
|
Pass band ripple |
≤5dB |
|
Guard band rejection |
(BW-60dB)≤42MHz , (BW-70dB)≤45MHz |
|
I/O impedance |
50Ω/N connector |
|
I/O return loss |
≤-3B |
|
Export power (Po) |
≥33dBm |
|
Intermodulation Attenuation(Po=33dBm) |
≤-40dBc |
|
Transmission Delay |
≤0.5μs |
|
Ambient temperature |
-10℃～60℃ |
|
Power supply |
AC110～240V 45～55Hz |
|
Size |
240 x 175 x 45 mm |
|
coverage area |
5000 m2 |
Features
1. High-gain linear power amplifier;
2.Automatic level control;
3.Ultra-low noise receiver amplifier;
4.No interference to the base station and no need to adjust the parameters of the original system and base stations after installation;
5. Stable and reliable EMC design;
6. It neither increases base station background noise nor declines the communication quality of base station;
7. Full-duplex communication mode;
8. Spurious emission, beautiful outlook and smart size.
Working area
1, small area with no signal or weak signal, such as underground or semi-underground, small basement, underground parking etc.
2, Traffic and large social impact area: bars, internet cafes, dance halls, cafes, fitness clubs, leisure and entertainment area, etc.
3. Elevators
4. Home, office, luxury yachts, private car, public security and road safety management, etc.
Installation Sketch Map
