Military Backpack GSM WIFI GPS Jammer Anti Drone UAV Jammer Prison

Place of Origin Guangdong, China
Brand Name EST
Certification CE, RoHS
Model Number EST-505F8P
Minimum Order Quantity 1 piece
Packaging Details 1 pcs brown box for one device, neutral packing
Delivery Time 5-10 working days after received the full payment
Payment Terms Paypal, Western Union, T/T
Supply Ability 10000 pcs per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Type Backpack High Power Jammer Jamming Radius 1-80m Adjustable (@-75dBm, Still Depends On The Signal Strength In Given Area)
Antenna 8pcs Omnidirectional Antennas Jamming Objects Europe / Middle East / Africa 2G/3G/4G Mobile & WiFi / Bluetooth Network, LoJack, Walkie-talkie, Remote Control...
Single Output Power(each Band) ≤ 37-40dBm / 5-10W Feature Portable Water-proof Backpack Jammer, Built-in Battery, Excellent Cooling Systems, Military Quality
Power Supply 100-240V AC Adapter / 24V 20AH Built-in Lithium Battery / DC24V External Power Battery Type Built-in DC24V 20AH High-capacity Li-ion Battery, Can Continuously Work For 1.5-2 Hours On A Full Charge
Dimension 550*150*350mm Full Set Weight 16.48kg
Application Military, Prison, Government, Farm, And Etc.
High Light

Military WIFI GPS Jammer

,

Backpack GSM WIFI GPS Jammer

,

GSM WIFI GPS Jammer

Leave a Message
Product Description
8 bands high power portable backpack blocker 1-80m cell phone 2G 3G 4G 5G & WiFi & GPS & walkie-talkie & remote control signal jammer with built-in battery(support 3 power supply modes) for prison / military / personal use

This custom 8-bands portable bi-power use backpack type RF signal jammer EST-505F8P can effectively block the mobile phone signals including 2G GSM / CDMA / DCS / PHS, 3G, 4G signals, 5G signals and Wi-Fi / Bluetooth, GPS L1 L2 L3 L4 L5 / GNSS, walkie-talkie, remote control signals, etc. within radius 1-80 meters. When it finds the signal, it will directly block it.


8 Frequency Bands(can be customized):

1. CDMA: 869-894MHz (RC/RF868: 868MHz)

2. GSM: 930-960MHz
3. DCS: 1805-1880MHz

4. PCS: 1930-1990MHz
5. 3G: 2110-2170MHz
6. 4G LTE: 725-770MHz (US standard) Or 790-826MHz (EU standard)
7. 4G Wimax: 2300-2400MHz (US standard) Or 2620-2690MHz (EU standard)

8. 5G: 610-680MHz

9. 5G: 3300-3600MHz (WiFi 3.6G: 3500-3600MHz)

10. 5G: 3600-3900MHz

11. 2.4G WiFi / Bluetooth: 2400-2500MHz
12. 5.2G WiFi: 5100-5500MHz
13. 5.8G WiFi: 5500-5900MHz
14. GPS L1 / Galieo L1 / Glonass L1: 1520-1670MHz

15. GPS L2-L4 / Galieo L2-L4 / Glonass L2-L4: 1170-1280MHz

16. GPS L3-L5 / Galieo L3-L5 / Glonass L3-L5: 1370-1390MHz

17. LoJack: 167-175MHz

18. FM radio: 80-110MHz
19. VHF / LoJack / XM radio: 135-175MHz
20. UHF / RC433: 400-470MHz

21. RC/RF315: 315MHz

and etc.




1. Parameters
Product Name: 8 Bands Portable High Power Cell Phone 2G 3G 4G 5G & WiFi & Walkie-Talkie Backpack Signal Jammer
Model No.: EST-505F8P
Color: Black
MOQ: 1 piece
Antenna: 8pcs omnidirectional antennas
Jamming Radius:

1-80m adjustable (@-75dBm, still depends on the signal strength in given area)

Jamming Objects: Europe / Middle East / Africa 2G/3G/4G mobile & WiFi / Bluetooth network, LoJack, walkie-talkie, remote control....
Feature:  Portable water-proof backpack jammer, built-in battery, excellent cooling systems, real-time voltage display, low battery alarm, military quality
Single Output Power (each band): ≤ 37-40dBm / 5-10W
Maximum Output Power: 70W
Power Supply: 100-240V AC adapter / 24V 20AH built-in lithium battery / DC24V external power(emergency power supply)
Battery Type:

Built-in DC 24V 20AH high-capacity lithium battery, can continuously work for 1.5-2 hours on a full charge

Dimension: 550*150*350mm
Full Set Weight: 16.48kg
Package Weight(N.W.): 18kg
Working Temperature: -40℃ ~ +55℃
Relative Humility: ≤90%(RH)
Air Pressure: 86~106kPa





2. Features


*Portable backpack compact design, water-proof, convenient to carry and use.
*Independent dual power supply system(One-key switch between AC power supply & battery power supply).
*Four channel switch(4C switch) to control with OFF/Charging/AC 220V Power Supply/DC 24V Battery Power Supply.
*Low battery alarm LED screen with sound and jumping to help get battery using status.
*Low noise, good cooling system with 5 high power cooling fans and big aluminum heat sink inside the box.
*High Gain antenna, with the best performance.
*Import original IC, SMT technology.
*Effectively blocks GPS satellite navigation, location tracking, LoJack signals, to protect your whereabouts of privacy and confidential information.
*Effectively blocks CDMA / GSM / DCS / PHS / 3G / 4G / 5G and other mobile phone signals.
*Can block 2.4G WIFI / 5.8G WIFI and wireless video transmission signals.

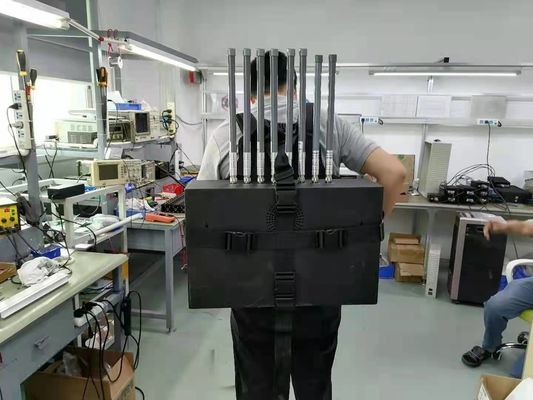

Military Backpack GSM WIFI GPS Jammer Anti Drone UAV Jammer Prison 0

Military Backpack GSM WIFI GPS Jammer Anti Drone UAV Jammer Prison 1

Military Backpack GSM WIFI GPS Jammer Anti Drone UAV Jammer Prison 2



3. Application Place



*Conference room, confidential meeting, action conference, mobile command center, close protection, VIP protection, convoy, hostage negotiation, law enforcement agency, counter-terrorism unit, SWAT, bank, church, mosque, law court, cinema, theater, hospital, school, library, concert hall, training center, car, train, bus, etc.
*Whenever information security and high confidentiality is needed, to prevent information leakage at sensitive places where using mobile phones or other radio communication devices is prohibited such as government, military, finance, security, police and command center.

Military Backpack GSM WIFI GPS Jammer Anti Drone UAV Jammer Prison 3



For more details, please contact Amy via amy@szeastlonge.com / alina1013@foxmail.com, or whatsapp +86 134 1856 8064, thank you.
