900 & 2100MHz Dual Band Repeater / Amplifier

Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | High Gain / Full-duplex / Single-Port | Product Name | Dual Band Repeater |
---|---|---|---|
Coverage Area | 2000m2 | Export Power (Po) | ≥27dBm |
Size | 220 X180 X 20 Mm | Coverage Area | 2000 M2 |
I/O Impedance | 50Ω/N Connector | Certifications | CE And RoHs |
Highlight | dual band cell phone repeater,dual band signal booster |

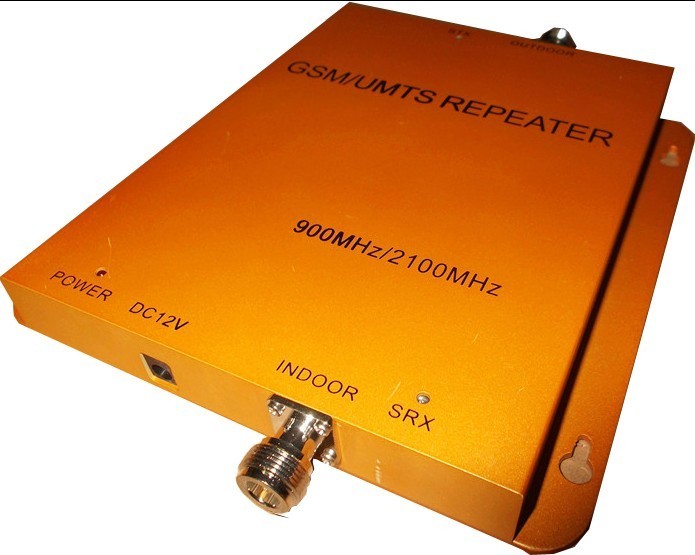

900 & 2100MHz Dual Band Repeater / Amplifier GSM/UMTS980
1 Quick details : Uplink 890-915MHz 1930-1990MHz Downlink 935~960MHz 2110-2180MHz
Coverage area : 2000m2
Hot sales:
* Provide the ultimate solution in any area where cellular communications can work well due to leak of signals.
* Easy Installation and operation
* Improve indoor electromangetism environments
* Boost mobile phone singal
Are you are faced problem with your mobile network?
We are here to help provide you with a wide range of products that will boost your mobile phone reception to a usable level.
* Hanging out of Windows to make a call?
* Getting cold in the Office car park to make a quick call?
* Suffering with frustrating dropped calls?
* Really slow mobile Internet data speed?
* New contract poor reception and the Mobile network will do nothing to help?
* Tried everything including rubbish antenna stickers from the local market!
The dual band repeater will resolve all of your problems
2 Specification
Frequency range |
Uplink 890-915MHz 1930-1990MHz Downlink 935~960MHz 2110-2180MHz |
Gain ( dB) |
Uplink Gp≥60 Downlink Gp≥65 |
Export power (Po) |
≥27dBm |
Pass band ripple |
≤3dB |
I/O impedance |
50Ω/N connector |
Noise figure |
≤4dB |
Transmission Delay |
≤0.5μs |
Ambient temperature |
-10℃~60℃ |
Power supply |
AC110~240V 45~55Hz |
Size |
220 x180 x 20 mm |
Reliability |
To the GB6993-86 standard |
Electromagnetic compatibility |
To the ETS300 694-4 standard |
Function |
a) Power supply LED denote b) Export power LED denote |
coverage area |
2000 m2 |
3 Installation Approaches
- Fix up outdoor antenna reception on housetop and point to signal tower.
- Connect outdoor antenna to “outdoor” port in repeater machine through cable.
- Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
- Plug power adaptor into AC power socket and finish installation.
4 Technique Supporting
- If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
- If can not call out, please adjust the direction of outdoor antenna.
