Product Description

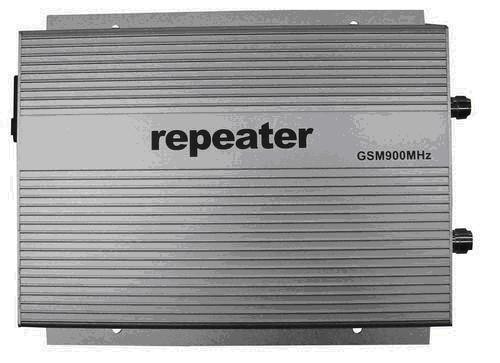

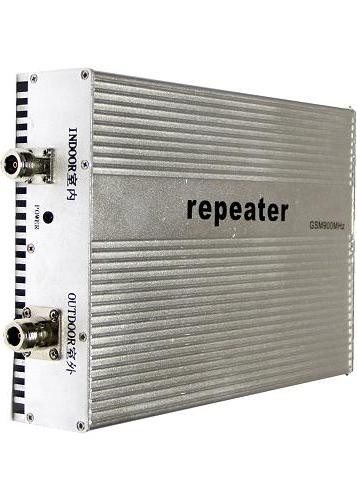

Full-duplex cellphone GSM Signal Booster For Home , office EST-GSM990



Quick Details,

frequency:900MHz

gain:33dB

coverage:5000sqm

power supply: it is built-in power supply

power:DC12V

connector:N connector



Specification

Frequency range

Uplink  890-915MHZ

Downlink  935-960MHZ

Gain ( dB)

Uplink  Gp≥70



Downlink   Gp≥75

Pass band ripple

≤5dB

Guard band rejection

(BW-60dB)≤42MHz , (BW-70dB)≤45MHz

I/O impedance

50Ω/N connector

I/O return loss

≤-3B

Export power (Po)

≥33dBm

Intermodulation

Attenuation(Po=33dBm)

≤-40dBc

Transmission Delay

≤0.5μs

Ambient temperature

-10℃～60℃

Power supply

AC110～240V   45～55Hz

Size

240 x 175 x 45 mm

coverage  area

5000 m2



Features

1. High-gain linear power amplifier;
2.Automatic level control;
3.Ultra-low noise receiver amplifier;
4.No interference to the base station and no need to adjust the parameters of the original system and base stations after installation;
5. Stable and reliable EMC design;
6. It neither increases base station background noise nor declines the communication quality of base station;

7. Full-duplex communication mode;

8. Spurious emission, beautiful outlook and smart size.



Working area

1, small area with no signal or weak signal, such as underground or semi-underground, small basement, underground parking etc.

2, Traffic and large social impact area: bars, internet cafes, dance halls, cafes, fitness clubs, leisure and entertainment area, etc.

3. Elevators
4. Home, office, luxury yachts, private car, public security and road safety management, etc.



Installation Sketch Map



high power GSM Signal Booster For Home , office EST-GSM990 0
