2000M Long Distance Glonass Galileo GPS 2.4G 5.2G 5.8G FPV Drone UAV Signals Backpack Jammer

Product Description:

As a leading signal jammer manufacturer, Eastlonge has been independently developing various wireless jammers to meet the more and more needs of defence for walkie talkie/WiFi/Bluetooth/mobile phone and etc., we are with strong functions and long interference distances, which can intercept all mobile phone signals, including: GSM/DCS/PCS/3G/4G LTE/4G WiMAX/4G Mobile/5G, and other kinds of wireless signals like VHF/UHF, 2.4G WiFi/5.2G WiFi/5.8G WiFi/WiFi 6E, Bluetooth, and etc. Currently our jammer EST-750B6’s working frequency bands are normally VHF: 135-175MHz, UHF: 400-470MHz, 2.4G WIFI: 2400-2500MHz, GSM/4G900: 925-960MHz, GSM/DCS/4G1800: 1805-1880MHz and 3G/4G: 2110-2170MHz, through intercepting these 6 bands by launching high-power electromagnetic waves, the target objects would be not able to communicate with each other or no internet to search anything, and the final result to achieve is that the walkie talkie/mobile phones/WiFi&Bluetooth worked devices stop working and signals transmission, to ensure the security of information leakage.

Features:

Color Available: black / green

Available System: Include analog (AMPS, TACS, NMT) and GSM, 2G, 3G, 4G, WiFi, Bluetooth, VHF UHF and etc.

Single Output Power: +47dBm / 50W±2W

Maximum Output Power: 300W (VHF: 50W; UHF: 50W; 2.4G WIFI: 50W; GSM900: 50W; GSM1800: 50W; 3G: 50W; 6 bands in total)

Power Consumption: ≤400W

Power Input: AC / DC adapter (Input: AC 100-240V, Output: DC 27V 30A)

Shielding Distance: 10-500 meters

The jamming performance still depends on the strength signal in given area

Safety Regulation:AC Adapter UL (E190582) / CSA (LR112971 Level 3)

Dimension: 488(L) ×369(W) ×189(H) mm not include antenna

Antenna: 6pcs high-gain omini directional antenna: Dia 20 x 60(H) mm / net weight: 350g / Single Output Power: 6dBi

OR 1pc directional panel antenna: 370(L)x370(W)x118(H)mm / net weight: 2130g / Single Output Power: VHF: 3dBi, UHF: 3dBi, 2.4G Wi-Fi: 12dBi, GSM900: 5dBi, GSM1800: 8dBi, 3G: 8dBi

Battery Type: built-in DC 24V 30AH rechargeable Li-ion battery, support about 40-60 minutes after fully charged

Weight : 16.5kg (jammer only, excluding antennas and cables) / 20kg (full set with antennas)

Cooling System: built-in 2pcs cooling fans

Temperature :-30 to +60℃

Relative Humility:≤85 %( RH)

Humidity&Dust Protection: IP54

Air Pressure:86~106kPa

*Jamming multiple wireless signals VHF/UHF/2.4G WiFi/GSM/2G/3G/4G, 6 bands work simultaneously.

*Built-in rechargeable high capacity lithium battery, support 40-60 minutes working.

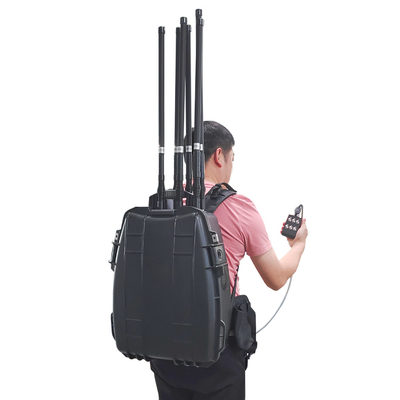

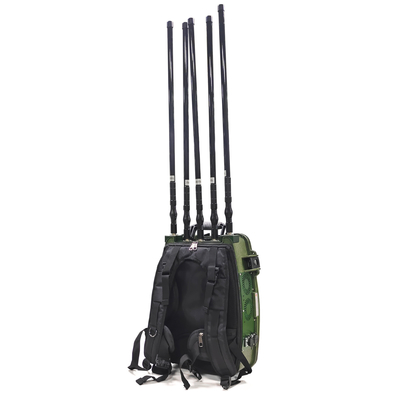

*Support with AC and DC charging both, the backpack design for easy moving, can take anywhere.

*Real high power as each transmission power in 50W, total maximum power output around 300W.

*Can use with 2 different kind of high gain antenna: omni fiber glass antennas and directional panel antenna.

*Best cooling system with ultra heat sink inside, large cooling fans to bring cool air in and blow hot air out.

*High strength ABS shell, not easy to be damaged while shipping and moving.

*High power adjustable according to various occasions and customer’s requirement.

*Cut off all contact between the target objects, make them all stop working and no signals transmission.

Technical Parameters:

Applications:

1. Protection of security zones, such as politically sensitive areas, military management areas, national strategic resources projects, nuclear industrial facilities, airports, prisons, and border defense areas.

2. The site to prevent information leakage, such as: major security activities on-site, major criminal cases on-site, urban management law enforcement site, politicians accompanying protection, rehearsal of large-scale performances, important security venues, archaeological excavation site, large-scale group event scene.

3. Combat the use of mobile phone signals and walkie talkie signals as a carrier of illegal activities, such as: terrorist attacks, trafficking in smuggled drugs, illegal articles or information transmission.
