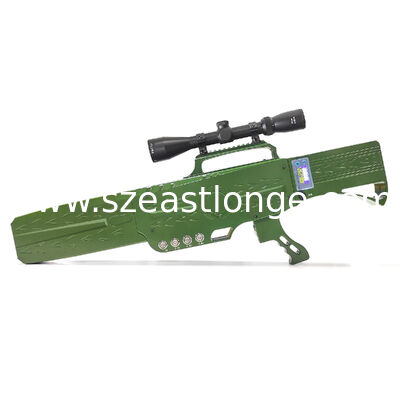

6/8 Bands Small Portable Navy Green Gun Style Anti Drone System Featured with Built-in Battery For Drone Interception
Product Details
| Maximum Power Consumption | 200W (depends On The Final Shape) | Total Output Power | 60W (depends On The Final Shape) |
|---|---|---|---|
| Application | FPV Drones, And Other Kinds Of Anti-drone Device/system | Dimensions | 755x256x60mm (depends On The Final Shape) |
| Heat Assumption | Air Cooling | Jamming Radius | 100-1000 Meters (depends On The Final Shape) |
| Jamming Modes | 5 Modes | Function | Up To 20 Featured Functions |
| Highlight | portable gun style anti drone system,navy green drone jammer with battery,small anti drone system for interception |
||
Product Description
6/8 Bands Small Portable Navy Green Gun Style Anti Drone System
As a leading signal jammer manufacturer, Eastlonge has developed this anti-drone UAV jammer to meet growing drone defense needs. The system intercepts all GNSS satellite positioning signals including GPS, Beidou, GLONASS, Galileo, and QZSS. By disrupting key frequency bands, the drone becomes unable to complete remote control, map transmission, or positioning, resulting in forced landing, hovering, or return to starting point.
Key Features
- Cuts off all contact between drone and controller
- Disables drone positioning and forces landing or return
- Prevents ground controller from receiving aerial photography
- Suitable for FPV drones and anti-drone systems
- Multiple jamming methods: forced return, hover, signal scramble
- Effective in various environments
- Functions as fixed drone radio jammer
- Acts as flying FPV drone blocker
Technical Specifications
| Parameter | Specification |
|---|---|
| Weight | 5.5 kg (excluding charger) |
| Host Size | L 755mm × W 256mm × D 60mm |
| Design | Sci-Fi design |
| Host Structure | High-strength ABS material |
| Power Supply | Built-in rechargeable 24V 8000mAh lithium battery |
| Operating Time | 90-120 minutes continuous operation |
| Maximum Power Output | 60W total (10W per band: 2.4G WIFI, 5.8G WIFI, 1.4G GPS, 1.5G GPS, GSM800, GSM900) |
| Intercept Methods | Forced return, forced landing, hovering, image transmission interference |
| Control Distance | ≤1500 meters |
| Trigger Life | >100,000 cycles |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +60°C |
Working Principle
Our portable drone jammers take control of UAVs in flight by launching high-power electromagnetic waves that cut off all connections between the UAV and remote control or ground station. This prevents video and image transmission and forces the drone to return, land, or hover according to its programmed settings.
Frequency Band Effects:
• GPS satellite navigation (1.4G & 1.5G): Disables positioning but allows remote control
• Remote control & image transmission (800MHz, 900MHz, 2.4G, 5.8G): Disables remote control and video/image transmission
• Combined jamming: Complete disruption of control, positioning, and transmission
• GPS satellite navigation (1.4G & 1.5G): Disables positioning but allows remote control
• Remote control & image transmission (800MHz, 900MHz, 2.4G, 5.8G): Disables remote control and video/image transmission
• Combined jamming: Complete disruption of control, positioning, and transmission
Operation Method
- Interfere with remote control and image transmission: Turn on 800MHz/900MHz/2.4G and 5.8G switches, pull and hold trigger until beep sounds, then aim at drone
- Interfere with GPS navigation, remote control, and image transmission: Turn on GPS 1.6G, GPS 1.4G, 800MHz/900MHz/2.4G & 5.8G switches, pull and hold trigger until beep sounds, then aim at drone
- After use: Turn off all switches and battery voltage display to prevent accidental triggering
- Charging: Open waterproof plug, insert charger - red light indicates charging, green light indicates complete
- Battery check: Turn on battery switch to display voltage - charge when below 22V
Primary Applications
- Protection of no-fly zones: politically sensitive areas, military zones, nuclear facilities, airports, prisons, border defense
- Security against information leakage: major events, criminal investigations, executive protection, performances, examinations
- Countering illegal drone activities: terrorist attacks, smuggling, illegal information transmission
The EST-710A6 Portable Drone Jammer is our self-developed UAV interception device that interferes with drone frequency bands, disrupting uplink and downlink signal transmission. It completely severs connections between drones and control stations, making it ideal for prisons, detention centers, security agencies, military units, and security companies. OEM options available.
