Optional IoT Smart Management Software Control EST-804F12 12 Bands Cell Phone 2G 3G 4G 5G WIFI Signal Jammer
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | EST |
| Certification | CE, RoHS |
| Model Number | EST-804F12 |
| Minimum Order Quantity | 1 piece |
| Packaging Details | 1 pcs gift box for one device, neutral packing |
| Delivery Time | 5-10 working days after received the full payment |
| Payment Terms | Paypal, Western Union, T/T |
| Supply Ability | 10000 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Jamming Range | Radius 1-25M (can Adjust According To Your Requirement, The Signal Strength Must Be ≤-75dBm In The Location) | Antenna | 12 Omni-directional Antennas |
|---|---|---|---|
| Working Bandwidth(MHz) | 12 Bands Including GSM/CDMA/DCS/PHS/3G/TD-SCDMA/WCDMA/4G/4G LTE/5G/2.4G WIFI/5.8G WIFI/GPS | Power Supply | AC 220V/ DC27V10A |
| Single Output Power(each Band) | +35dBm / 3W | Total Output Power | 36W |
| Total Power Consumption | 150W | Host Weight | 3.8KG |
| Dimension | 280×240×60 Mm, Not Include Antenna | Function | Block GSM/CDMA/DCS/PHS/3G/TD-SCDMA/WCDMA/4G/4G LTE/5G/2.4G WIFI/5.8G WIFI/GPS Signal |
| Warranty | 12 Months | ||
| High Light | cell phone wifi jammer,cell phone frequency jammer |
||
Product Description
Optional IoT Smart Management Software Control EST-804F12 12 Bands Cell Phone 2G 3G 4G 5G WIFI Signal Jammer
1. Product Specification
* available TX frequency which can be adjusted and used in this 12 antenna jammer
(adjustable per customer request)
1st Channel: CDMA: 870-880MHz
2nd Channel: GSM: 925-960MHz
3rd Channel: DCS/PHS: 1805-1880MHz
4th Channel: GPS: 1500-1600MHz
5th Channel: 4G1: 1850-1920MHz
6th Channel: TD-SCDMA: 2005-2025MHz
7th Channel: WCDMA: 2110-2170MHz
8th Channel: 2.4G WIFI: 2300-2500MHz
9th Channel: 4G2: 2550-2660MHz
10th Channel: 5G1: 3300-3600MHz
11th Channel: 5G2: 4800-5000MHz
12th Channel: 5.8G WIFI: 5715-5860MHz
OEM is available for the frequency bands.
| Product Name: | Optional IoT Smart Management Software Control EST-804F12 12 Bands Cell Phone 2G 3G 4G 5G WIFI Signal Jammer |
| Model No.: | EST-804F12 |
| Color: | Black |
| MOQ: | 1 piece |
| Antenna: |
12 omni-directional antennas |
| Jamming Range: |
Radius 1-25M【the Cellular signal must be ≤-75dBm in the location】 The jamming radius still depends on the strength signal in given area |
| Available System: |
Worldwide cell phone 2G 3G 4G 5G & GPS & WIFI network |
| Single Output Power: |
+35dBm / 3W, can be adjusted |
| Total Output Power: |
36W |
| Working Power: |
AC 220V / DC27V10A |
| Dimension: |
280×240×60 mm not include antenna |
| Host Weight: | 3.8kg |
| OEM: | Available |
| Logo Printing: | Available if the order quantity is large enough. |
| Packing: | 1 pcs gift box for one device, neutral packing |
| Working Temperature: |
-40℃ ~ +55℃ |
| Relative Humility: | ≤90%(RH) |
| Air Pressure: | 86~106kPa |
2. Application
▲ Various conference rooms, auditoriums, courts, libraries, examination rooms, schools, cinemas, opera houses;
▲ Gas stations, gas stations, oil and gas fields, oil and gas reservoirs;
▲ Government, military, prison, public security, command system and other places where mobile communication equipment is prohibited.
3. Features
1. It can effectively block 2G/3G/4G/5G mobile phone signal and GPS, 2.4+5.8GWIFI signal, and it can also be customized according to your requirements
2. Transmitting power: 3W per channel, 36W using imported power amplifier and IC.)
4. With standing wave protection technology, it is not easy to damage.
5. Heat dissipation system: high efficiency aluminum alloy large radiator with 5 cooling fans
6. Adopt high-efficiency whip long antenna
7. Optional IoT management software, can control the switch of the equipment through our intelligent jammer management system, can set the working hours(start time + end time) according to your need.
3. Packing List
1). Multi functional signal jammer(main unit) 1 piece
2). Antenna 1set (12 pieces)
3). Power adaptor(AC plug) 1 piece
4). User’s manual(depend on customer choice) 1 piece

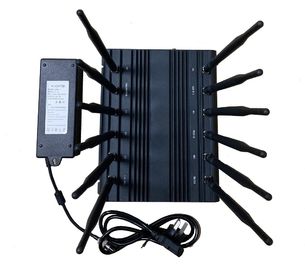

4. Product Photos
