3 Way Power Divider/Splitter EST800-2500MHZ With High Power 150W
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Power Divider/Splitter | Model | EST800-2500MHZ |
|---|---|---|---|
| Frequency Range | 800-2500MHZ | Biggest Power | 150W |
| Connector | N-female | Size | 140x85x20 Mm |
| Highlight | ROHS 3 Way Power Divider,3 Way Power Splitter 150W |
||
Product Description

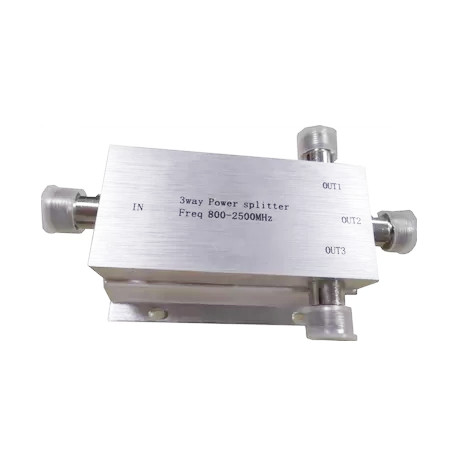

3 Way Power Divider/Splitter EST800-2500MHZ With High Power 150W
Specifications
Micro-strip Power Splitter/Divider Features:
1. Wide Frequency Range
2. Low Insertion Loss
3. Low VSWR
|
Model |
EST800-2500MHZ 3way splitter |
|
Frequency range |
800-2500MHZ |
|
I/O impedance |
50Ω |
|
Ambient temperature |
-10℃～60℃ |
|
Biggest power |
150W |
|
Insertion loss |
≤5.1db |
|
Connector |
N-female |
|
Size |
140 x85 x 20 mm |
|
Weight |
0.38kg |
