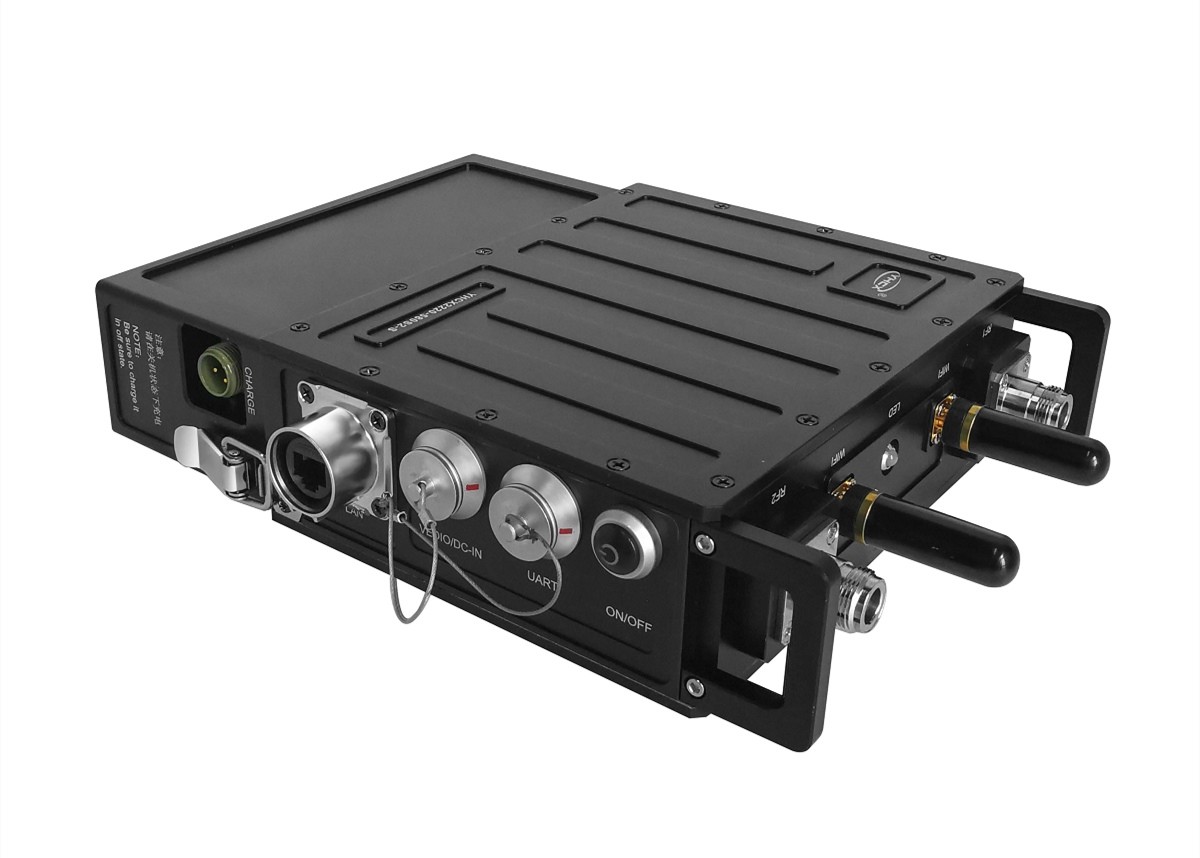

Portable Emergency Communication System With Remote Surveillance

Place of Origin Guangdong, China
Brand Name EST
Certification CE, RoHS
Model Number EST-MESH02-DB
Minimum Order Quantity 1 piece
Packaging Details 1 pcs gift box for one device, neutral packing
Delivery Time 5-10 working days after received the full payment
Payment Terms Paypal, Western Union, T/T
Supply Ability 10000 sets per month

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model No. EST-MESH02-DB Frequency Range 580MHz
Channel Bandwidth 5 / 10MHz (optional) Transmitting Power 1 / 2 / 3W (optional)
Working Voltage DC12V Working Current ≤2A
Power Consumption ≤20W Working Temperature -20 ℃ ~ 50 ℃
Dimension 251*203*58mm Weight 3.42KG(with Battery)
High Light

Portable Emergency Communication System ROHS


DC12V Emergency Communication System

Leave a Message
Product Description

Portable Emergency Communication System for Disaster Relief and Rescue with remote surveillance



1. Non-line-of-sight communication
2. No center ad hoc network;
3. Independent encryption security algorithm;
4. Center frequency: 580Mhz
5. High transmission rate: peak 11Mbps @ 10Mhz
6. Super receiving sensitivity: -92dBm @ 10Mhz



1. Based on the growing demand of the private network communication market, our company launched the first-generation Mesh product ESTMESH series, which can realize IP network-based transmission of video, image, voice and other IP data in complex environments, with a wide coverage, High transmission speed, significant advantages such as completely custom security encryption.

2. EST-MESH series can be used for point-to-point communication, and can also be used for non-center multi-hop ad hoc networks. Each Mesh grid can access up to 32 nodes.

3. Depending on the working environment and the number of nodes, the throughput of the EST-MESH series can reach 11 Mbps, and the transmission distance can be extended through multi-hop. The self-healing characteristics of the Mesh self-organizing network make the ESTMESH series very suitable for mobile monitoring, high-definition image transmission, emergency communications and other applications.

4. The military-grade complete machine is designed to be lightweight and easy to carry. The shell is made of metal. The design fully takes into account factors such as heat dissipation, safety protection, and harsh working environment, and is simple and convenient to deploy.

5. The product is completely self-developed, with core technology and intellectual property rights in its own hands. Sensitive customers and projects in various industries can be safely used, and can be quickly and flexibly customized according to user needs.

6. Application fields of this equipment: public security, armed police, fire protection, disaster relief and other emergency communication systems; power, water conservancy, waterway, border and coastal defense monitoring; drone aerial photography, etc.



Technical Parameters:


Product Name: Portable Emergency Communication System for Disaster Relief and Rescue with remote surveillance
Model No.: EST-MESH02-DB
Frequency range: 580MHz
Channel bandwidth: 5 / 10MHz (optional)
Transmitting power:

1 / 2 / 3W (optional)

Digital sensitivity:

-92dBm @ 10MHz

Transmission rate:

peak 11Mbps @ 10MHz

Networking capability:

Supports up to 32 nodes

Working voltage: DC12V
Working current:


Power consumption:


Center frequency: 580MHz
Bandwidth: 10MHz (can be customized)
Protection class: IP65
Working temperature: -20 ℃ ~ 50 ℃
Storage temperature: -40 ℃ ~ 80 ℃
Dimension: 251*203*58mm
Weight: 3.42KG(with battery)




Portable Emergency Communication System With Remote Surveillance 0


User terminal control software:

Portable Emergency Communication System With Remote Surveillance 1



Portable Emergency Communication System With Remote Surveillance 2


1. Offshore oil well communication

2. Fire and Disaster Emergency Communications

3. Border and Coast Guard Surveillance
