High Power Cell Phone Signal Repeater 1800MHz , 1805 - 1880MHz Downlink
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cell Phone Signal Repeater | Frequency Range | Uplink:824—849MHZ Downlink 869-894MHz |
|---|---|---|---|
| Export Power (Po) | ≥27dBm | Pass Band Ripple | ≤3dB |
| Power Supply | AC110～240V 45～55Hz | Coverage Area | 1000 M2 |
| Highlight | Cell Phone Signal Amplifier,GSM Signal Repeater |
||
Product Description

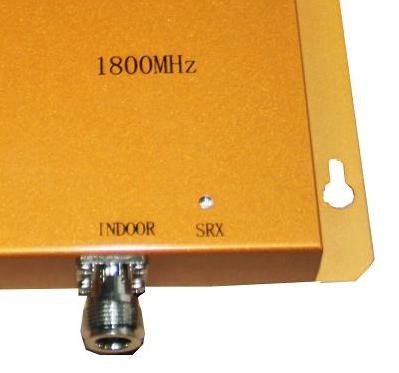

High Power Cell Phone Signal Repeater 1800MHz , 1805 - 1880MHz Downlink
1 Quick details :
1 Uplink:1710~1785MHz Downlink 1805~1880MHz
2 Coverage area : 1000m2
3 Function :1. Enhance Mobile Phone Signal Strength
4 easy installation & operation
5 Build-in Power Supply
2 Brief description
The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal. A mobile phone repeater could also improve indoor ctromagnetism environments, protract cellular battery life and reduce radiation of cellphones.
3 Technique
|
Frequency range |
Uplink:1710~1785MHz Downlink 1805~1880MHz |
|
Gain ( dB) |
Uplink Gp≥60 Downlink Gp≥65 |
|
Export power (Po) |
≥27dBm |
|
Pass band ripple |
≤3dB |
|
I/O impedance |
50Ω/N connector |
|
Noise figure |
≤4dB |
|
Transmission Delay |
≤0.5μs |
|
Ambient temperature |
-10℃～60℃ |
|
Power supply |
AC110～240V 45～55Hz |
|
Size |
220 x180 x 20 mm |
|
Reliability |
To the GB6993-86 standard |
|
Electromagnetic compatibility |
To the ETS300 694-4 standard |
|
Function |
a) Power supply LED denote b) Export power LED denote |
|
coverage area |
1000 m2 |
4 product warranty
· free replacement for first three months ( our company pay the shipping cost )
· The warranty period is 3 years. ( shipping cost under customer's expenses)
· lifetime warranty :1,no big damage to the product;2,shipping cost under customer's expenses;3, Only charge for material cost depending on the specific condition ( case by case)
