High Speed 3G Repeaters Cell Phone Signal Repeater With Big Linear Power
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | 3G Repeaters | Frequency Range | Uplink:1930~1990MHz Downlink 2110~2180MHz |
|---|---|---|---|
| Export Power (Po) | ≥20dBm | Power Supply | AC110～240V 45～55Hz |
| Size | 220 X180 X 20 Mm | Coverage Area | 1000 M2 |
| High Light | Cell Phone Signal Amplifier,GSM Signal Repeater |
||
Product Description

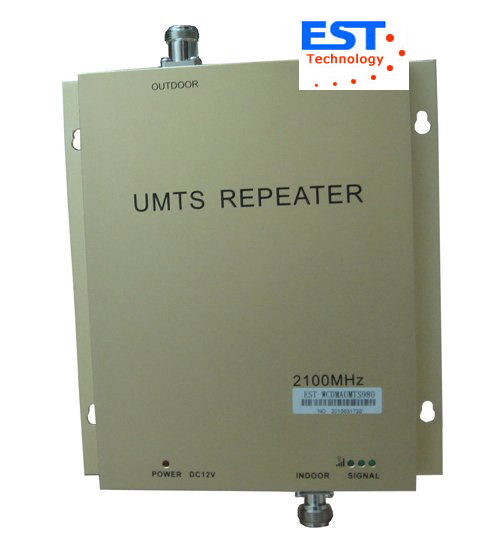

High Speed 3G Repeaters Cell Phone Signal Repeater With Big Linear Power
A mobile phone signal repeater provides the ultimate solution in any area where cellular communications can not work well due to leak of signals. The repeater device features easy installation & operation, build-in indoor antenna and no interference. It could also improve indoor electromagnetism environments, protract cellular battery life and reduce radiation of cellphones. A mobile phone repeater is ideal for house, home, office use.
|
Introduction To Mobile Phone Signal Repeater |
|
1. Enhance Mobile Phone |
|
2. Improve |
|
3. Reduce |
|
4. Protract |
|
5. Economic Building Cost |
|
6. Easy Operation |
|
7. Easy Installation |
|
8. Build-in Power Supply |
The device featured by easy installation & operation and no interference. It is the ideal device for boost mobile phone signal. A mobile phone repeater could also improve indoor ctromagnetism environments, protract cellular battery life and reduce radiation of cellphones.
|
2. Features |
|
High gain, easy installation and operation. |
|
Full-duplex, single-port design, build-in power supply. |
|
Use ALC technology, adjust extent automatically |
|
LED Light Working & Signal Condition Indicators |
|
Big linear power, control intermodulation & scatteration stably |
|
Dependability stand by GB6993-86 standard |
|
Compatibility of electromagnetism according with ETS300 609-4 |
|
CE and RoHs Approved |
Technique
|
Frequency range |
Uplink:1930~1990MHz Downlink 2110~2180MHz |
|
Gain ( dB) |
Uplink Gp≥60 Downlink Gp≥65 |
|
Export power (Po) |
≥20dBm |
|
Pass band ripple |
≤3dB |
|
I/O impedance |
50Ω/N connector |
|
Noise figure |
≤4dB |
|
Transmission Delay |
≤0.5μs |
|
Ambient temperature |
-10℃～60℃ |
|
Power supply |
AC110～240V 45～55Hz |
|
Size |
220 x180 x 20 mm |
|
Reliability |
To the GB6993-86 standard |
|
Electromagnetic compatibility |
To the ETS300 694-4 standard
|
|
Function |
a) Power supply LED denote b) Export power LED denote |
|
coverage area |
1000 m2 |
Specification sInstallation Sketch Map
Installation Approaches
- Fix up outdoor antenna reception on housetop and point to signal tower.
- Connect outdoor antenna to “outdoor” port in repeater machine through cable.
- Connect indoor antenna(s) to “indoor” port in repeater machine through cable also.
- Plug power adaptor into AC power socket and finish installation.
Technique Supporting
- If still no signal receipt after activated repeater, please check if outdoor antenna point to signal tower or elsewhere have strong signal and check if strength achieve -70DBM.
- If can not call out, please adjust the direction of outdoor antenna.
- If strength is not steady, please check if outdoor & indoor antennas are too close. Please ensure the outdoor and indoor antenna have distance of 20
Accessories
SelectionOutdoor antenna use 7 unit yagi type antenna, indoor antenna use board or rooftop antenna and signal wire use coaxial-cable.
Packing list
Main unit 1pc
Power supply 1pc
User manual 1pc
