4G LTE B34 20W High Gain Integrated Power Amplifier Module
| Place of Origin | CHINA |
|---|---|
| Brand Name | EST |
| Certification | CE&ROHS |
| Model Number | LTE20W-B34 |
| Minimum Order Quantity | 1PC |
| Price | US$100 per piece (not including freight) |
| Packaging Details | neutral packing |
| Delivery Time | 1-3 working days |
| Payment Terms | 100% before shipment, Western Union, T/T |
| Supply Ability | 500pcs/week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | mobile phone signal detector,cell phone signal scanner |
||
|---|---|---|---|
Product Description

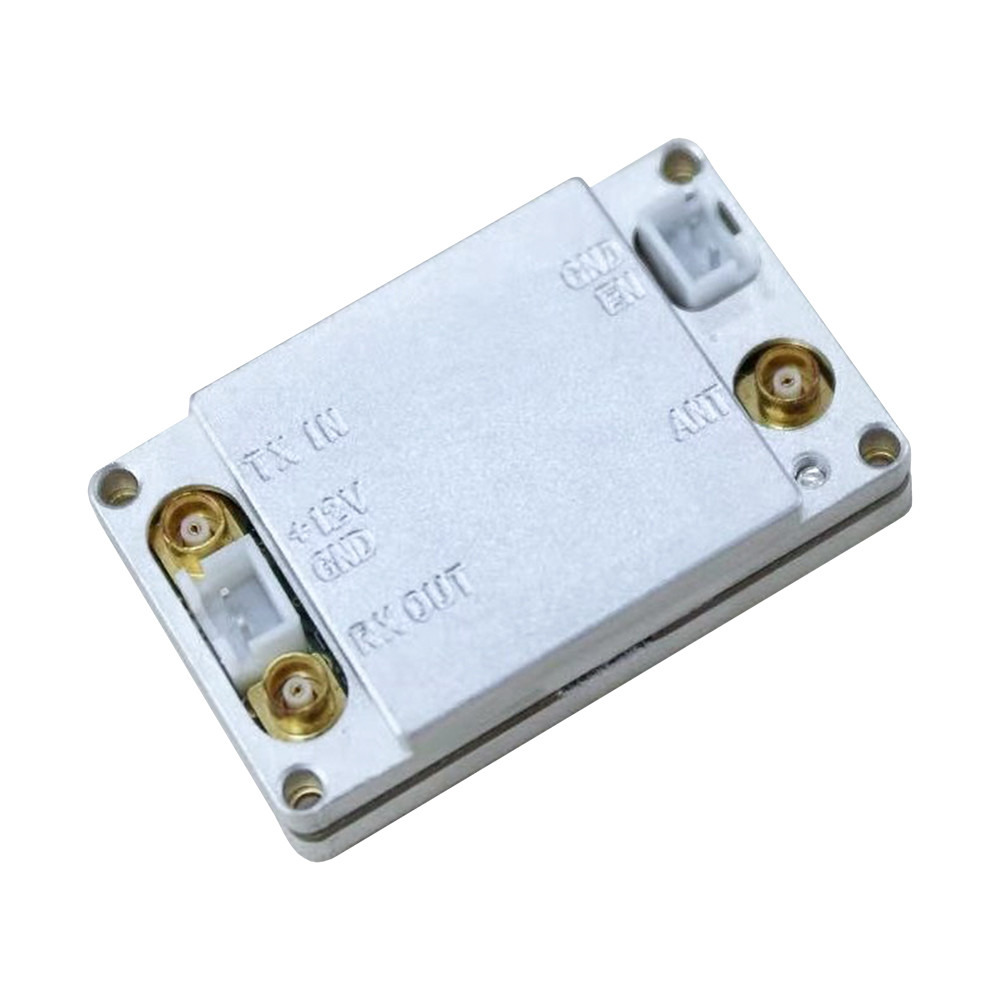

4G LTE B34 20W High Gain Integrated Power Amplifier Module
Product Description:
Our Power Amplifier Module, also known as PA Module, is a RF power amplifier with great performance. It can reach the working frequency of LTE/NR Frequency, which is very powerful. In terms of size, it is 80x50x16mm, and the working voltage can be either 12V or 28V. The passband ripple can reach as low as 2.0dB, and the working current should be less than 0.8A. This Power Amplifier Module is one of the best RF power amplifiers in the market.
Technical Parameters:
| Specification | ||
| Working Channel | Transmitting Channel (PA) | Receiving Channel (LNA) |
| Working Frequency | 2010-2025MHz | 2010-2025MHz |
| Output Power | 43±1dBm | -10±1dBm |
| Gain | 50±1dB | 25±1dB |
| Gain Adjustment Range | ≥25dB | ≥25dB |
| Gain Adjustment Step | 1dB | 1dB |
| ALC | ≥10dB | / |
| Passband Riplpe | ≤2.0dB | ≤2.0dB |
| ACPR | ≤-40dBc | / |
| Vector Amplitude Error (EVM) | ≤5% | / |
| Noise Figure | / | ≤3.8dB |
| Maximum Input Non-damage Level | 0dBm | -10dBm |
| Out-of-band Spurious | 9kHz～1GHz@≤-36dBm/30kHz；1GHz～12.75GHz@≤-30dBm/30KHz | |
| Input / Output VSWR | ≤1.5 | |
|
Working Current Working Voltage |
≤3.5A/DC+28V | |
| Working Temperature | -25～+55℃ | |
| RF Port |
PA IN,LNA IN, and LNA OUT ports in MCX-KHD PA OUT port in SMA-KHD |
|
| Power Monitoring Interface | 5569 connector, spacing 4.2MM, bent pin base 2*3PIN | |
| Time Slot Control | PEN pin is PA slot switch, high +3.3V on, low 0V off, default low level. LEN pin is LNA slot switch, high +3.3V on, low 0V off, default low level. | |
| Monitoring Type | RS485 monitoring protocol, optional as baud rate 9600/19200 (default 19200) | |
| Module Size | 130x110x21mm | |
Applications:
EST is a professional digital power amplifier module manufacturer with high power module for the LTE / NR frequency. This power amplifier module is certified with CE and RoHS, and has a minimum order quantity of 1pc. The module comes with neutral packing and delivery time of sample time 3-7days and production time 20-35days. Payment terms are 100% before shipment by T/T, Western Union or PayPal. The supply ability of this power amplifier module is 500pcs/week and it has a working voltage of DC 12V or DC 28V. With a gain of 40dBm (depends on different models) and input / output VSWR of ≤1.5, this module also has a passband ripple of ≤2.0dB.
Customization:
We offer customizations services for RF Power Amplifier Module, PA Module, High Power Module. Our products are branded as EST, and they are certified with CE and RoHS. We have a minimum order quantity of 1pc and provide neutral packing. Sample time is 3-7days and production time is 20-35days. We accept payment terms of 100% before shipment by T/T, Western Union or PayPal. We have a supply ability of 500pcs/week. The working current is ≤0.8A, the gain is 40dBm (depends On Different Models), the input / output VSWR is ≤1.5 and the passband ripple is ≤2.0dB. The working frequency is LTE / NR Frequency.
