Intelligent 3G Indoor Cell Phone Signal Repeater with dual band

Place of Origin China
Brand Name EST
Certification CE&ROHS
Model Number W2100-65-10-O,W2100-65-50-O
Minimum Order Quantity 1PC
Packaging Details neutral packing
Delivery Time 1-3 working days
Payment Terms 100% before shipment
Supply Ability 500pcs/week/C

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Highlight

mobile phone signal repeater

,

GSM Signal Repeater

Leave a Message
Product Description

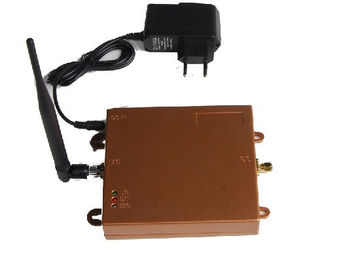

Intelligent 3G Indoor Cell Phone Signal Repeater with dual band







Specifications

model color frequency
uplink downlink
G900-65-10-O Golden 1920-1980 2110-2170
Electrical items index
max gain 65±3dB
uplink output power ≥10,17dBm
Downlink output power ≥10,17dBm
Noise figure (Max gain) ≤5.0dB
Pass band ripple ≤4.0dB
ALC/AGC (range) ≥30dB

Intermediation attenuation



Output 10dBm≤-50dBc
Output 17dB≤-45dBc
Output 20dBm≤-40dBc
Output 23dBm≤-36dBc
Max input power ≤-25dBm

Spurious Emission is 2.5MHz

away from working band edge



9kHz~150kHz ≤-36dBm @1kHz
150kHz~30MHz ≤-36dBm @10kHz
30MHz~1GHz ≤-36dBm @100kHz
1GHz~12.75GHz ≤-36dBm @1MHz
transmission delay ≤1.0μs
Indicator lights ISO(white and blue light):isolation indicator
DN (Red):downlink working indicator
UP (green):uplink working indicator
Working voltage DC 5.0V
working current ≤1.5A
Power adaptor AC 100~240V,50/60Hz
Ambient temperature -5℃~+45℃
relative humidity ≤85%

structural items



index
RF connector SMA-F
Power port KLD-40-17
Dimensions 150×115×27mm
weight ≤0.5Kg



Features

● testing the isolation of outdoor and indoor antenna

● Automatic adjustment (AGC) big coverage

● High-speed figure ALC

● output power indication

● automatically be standby without calls.

●automatically shut off of uplink and downlink once self-excitation.

● Clearance noise function of uplink and no interference to base station

● Uplink and downlink gain automatic balance;

●Small size, light weight, beautiful appearance, high gain and low power dissipation.

● Low noise amplifying, improving communication quality and reduction of dropped calls;

●Good aluminum shell shield, greatly improving the anti-interference ability.

● Easy installation and operation





Working area:

  • Residential areas
  • Villas
  • All kinds of entertainments, e.g. KTV
  • Underground bar and coffee house
  • Small conference room
  • Signal blind spot of business trip, traveling, home and offices etc.



Package

Main unit 1pc

Power supply 1pc

User manual 1pc
