450W Cell Phone Signal Jammer Suitcase Type For 3G 4G 5G 12 Bands
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | EST |
| Certification | CE, RoHS |
| Model Number | EST-850LC12 |
| Minimum Order Quantity | 1 piece |
| Packaging Details | 1 pcs gift box for one device, neutral packing |
| Delivery Time | 5-10 working days after received the full payment |
| Payment Terms | Western Union, T/T, Paypal |
| Supply Ability | 10000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Total Output Power | 450W | Power Supplier | AC 220V//14A |
|---|---|---|---|
| Power Consumption | ≤3000 | Relative Humidity | ≤85% |
| Working Temperature | -30℃ To 60℃ | Heat Assumption | Built-in 16 Cooling Fans |
| Size | 590*580*550(mm ) | Weight | 60Kg |
| High Light | 450W Cell Phone Signal Jammer,Suitcase Type Cell Phone Signal Jammer,explosion proof 12 band signal jammer |
||
Product Description
EST-850LC12 Cell Phone Signal Jammer Suitcase type for 3G 4G 5G
1. Introduction
EST-850LC12 Cell Phone Signal blocker, is designed for blocking 2G 3G 4G 5G and WIFI signal. EST-850LC12 high power portable all-frequency jammer, adopted with advanced communication technology, equipped with full-set of broad band frequency scramble, working power output over 400W, available for wide range signal blocking.
2. Technology
| Frequency Range(customized available) | CH1 | 20-50 |
| CH2 | 2300-2500 | |
| CH3 | 400-470 | |
| CH4 | 2500-2690 | |
| CH5 | 1800-1920 | |
| CH6 | 135-175 | |
| CH7 | 2010-2170 | |
| CH8 | 4800-5000 | |
| CH9 | 870-965 | |
| CH10 | 3400-3600 | |
| CH11 | 1500-1600 | |
| CH12 | 5715-6000 | |
| Total output power | 450W | |
| Power supplier | AC 220V//14A | |
| DC 24V100AH | ||
| Power consumption | ≤3000 | |
| Relative humidity | ≤85% | |
| Working temperature | -30℃ to 60℃ | |
| Heat assumption | Built-in 16 cooling fans | |
| Size | 590*580*550(mm ) | |
| Antennas | 90mm omnidirectional antennas | |
| Antennas weight | 0.5kg per band | |
| Gain | ≥ 8 dBi | |
| Weight | 60Kg | |
3. Operation instruction
(1) Take out the devices from package.
(2) Install the antennas into the bottom of machine in right order.
(3) Hang the jammer on the wall, the best height is ≥2M
(4) Connect with electricity with AC adaptor, turn on the power switch, the light on the jammer will show green if it is working.
(5) If the indicated light on the center of the jammer lights red, the jammer is working.
4. Maintenance
(1) This jammer needs no special maintenance.
(2) Please contain the jammer in dry and ventilated places, ensure the jammer is water-proof and moisture-proof.
(3) Please avoid caustic gases and liquids, make the detector dust-proof and moisture-proof, to prevent the aging of the inside components be accelerated.
(4) The warranty period is 12 months.
5. Application situation
Military base, special operation unit, infantry unit, special action, national boarder security, national security department, etc.

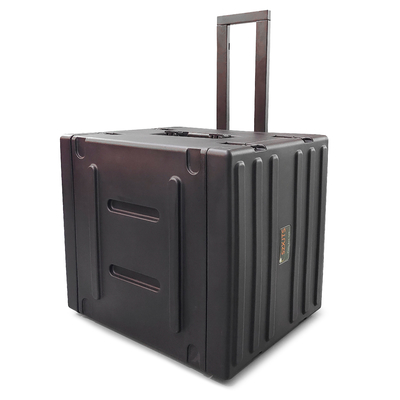

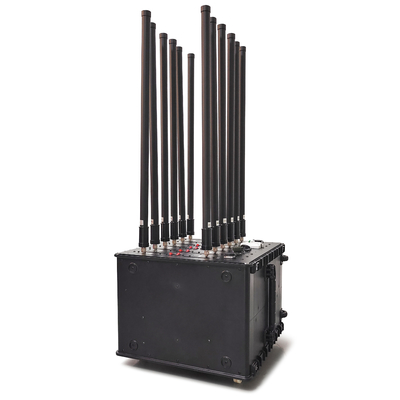

6. Product pictures
7. Packing list
(1) EST-850LC12 main unit 1pc
(2) Remote controller 1pc

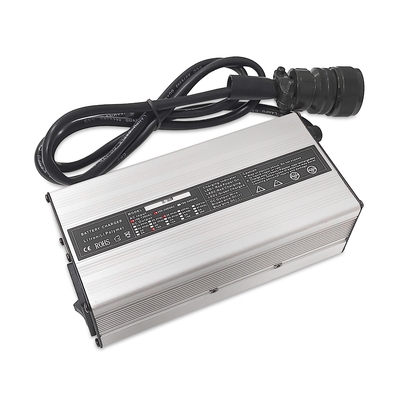

(3) Portable charger 1pc
(4) AC adaptor 1pc
(5) Remote controller connected cable 1pc
(6) Charger connected cable 1pc
