80x50mm Band1 2W Integrated Power Amplifier Module with DC 12V Working

Place of Origin China
Brand Name EST
Certification CE&ROHS
Model Number LTE2W-B1
Minimum Order Quantity 1PC
Packaging Details neutral packing
Delivery Time 1-3 working days
Payment Terms 100% before shipment (Western Union,PayPal&TT)
Supply Ability 500pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Working Frequency Uplink 1920-1980MHz / Downlink 2110-2170MHz Output Power 33±1dBm
Gain 40±1dB Passband Riplpe ≤2.0dB
Input / Output VSWR ≤1.5 Working Voltage DC 12V
High Light

cell phone signal finder


mobile phone signal detector

Leave a Message
Product Description

80x50mm Band1 2W Integrated Power Amplifier Module with DC 12V Working


Product Description:

Power Amplifier Module is a RF power amplifier module, which is designed for two-way radio communication applications. It has an input/output VSWR of ≤1.5, a working voltage of DC 12V or DC 28V, an output power of 33dBm (depending on different models), a passband ripple of ≤2.0dB, and a gain of 40dBm (depending on different models). It is suitable for a wide range of radio applications, such as two-way radio communication, radio broadcasting, and other signal processing. With its wide range of features, the Power Amplifier Module is an ideal solution for the most demanding radio communication applications. It is designed to be reliable, robust, and economical, while providing exceptional performance and high quality for its users.

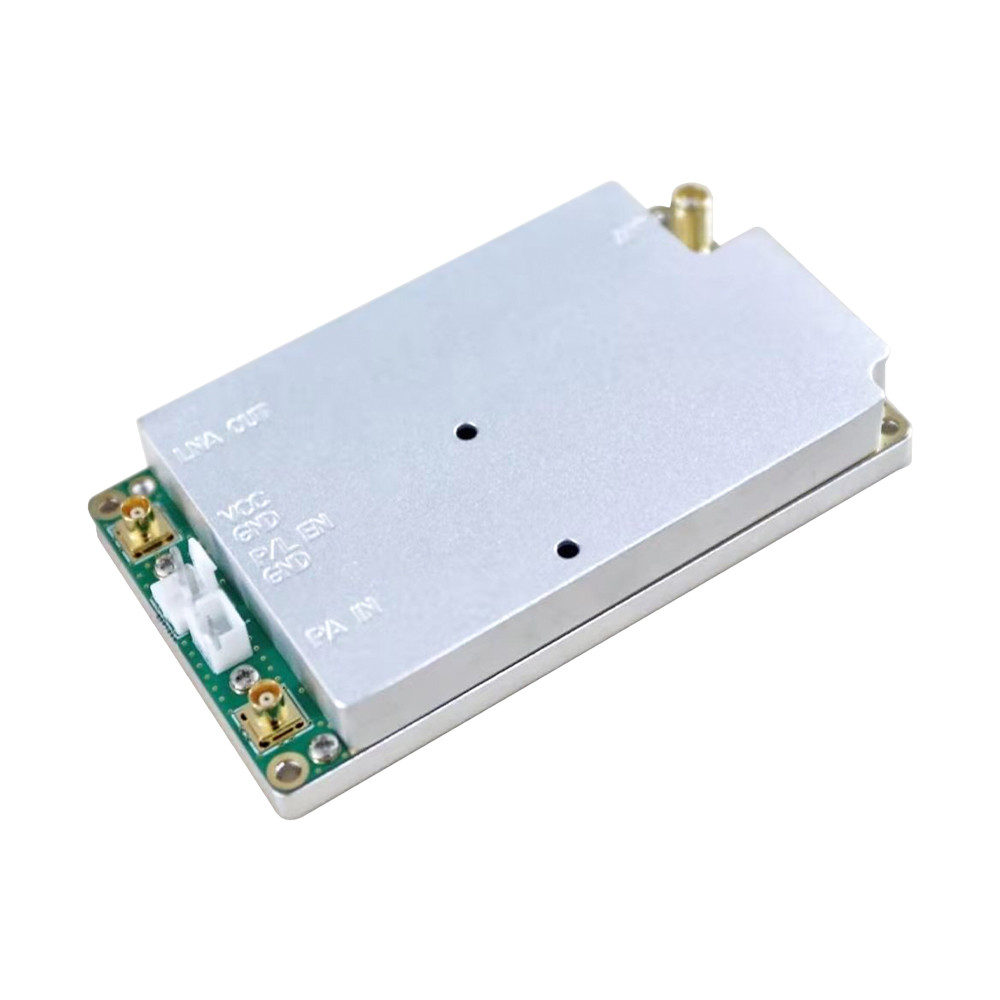

80x50mm Band1 2W Integrated Power Amplifier Module with DC 12V Working 0

Technical Parameters:


Working Frequency 2110-2170MHz 1920-1980MHz
Output Power 33±1dBm -10±1dBm
Gain 40±1dB 20±1dB
Passband Riplpe ≤2.0dB ≤2.0dB
EVM ≤5% /
Noise Figure / ≤1.8dB
Out-of-band Spurious



Input / Output VSWR ≤1.5
Working Voltage DC+12V
Working Current ≤1.8A

Power Supply

Monitoring Interface

PHD2.0MM-2*3PIN plug

L/EN Pin Power

Amplifier Enable Switch

high level (+3.3V) power amplifier off, low level (0V) power amplifier on, default low (0V)
RF Port MCX Female
Module Size 80×50×16mm
Working Temperature -25~+55℃


EST Power Amplifier Module

Brand Name: EST
Place of Origin: CHINA
Certification: CE, RoHS
Minimum Order Quantity: 1pc
Packaging Details: Neutral packing
Delivery Time: Sample time 3-7days, production time 20-35days
Payment Terms: 100% before shipment by T/T, Western Union or PayPal
Supply Ability: 500pcs/week
Working Current: ≤0.8A
Passband Riplpe: ≤2.0dB
Input / Output VSWR: ≤1.5
Gain: 40dBm (depends On Different Models)
Output Power: 33dBm (depends On Different Models)

EST Power Amplifier Module is a high power module that is widely used in the fields of radio communication, radar, navigation and other areas. With CE, RoHS Certification, it has a minimum order quantity of 1pc and a supply ability of 500pcs/week. In addition, its working current is ≤0.8A, passband ripple is ≤2.0dB, input/output VSWR is ≤1.5 and gain and output power is 40dBm and 33dBm (depends on different models) respectively.


The EST  Digital Power Amplifier Module is a reliable and versatile PA Module designed to meet demanding power requirements. Each order has a minimum quantity of 1pc and is packed in a neutral packing. It is widely used in ultrasonic acoustics, underwater communication, piezoelectric drive and control, electromagnetic field drive, radio energy transmission and other fields.
