Portable Mini Portable Blak Easy Take Cell Phone Signal Repeater GSM
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Color | Black | Model No. | EST-101D |
|---|---|---|---|
| Uplink | 890-915 | Downlink | 935-960 |
| High Light | mobile phone signal repeater,Cell Phone Signal Amplifier |
||
Product Description
Mini Portable Blak Easy Take Cell Phone Signal Repeater GSM
1. Quick Detail:
1) color:Black
2) frequency: uplink 890 - 915 MHz, downlink 935 - 960 MHz
3) gain: 45 dB
2. Introduction:
Portable mini pico mobile phone signal repeater is a new product which will solve the inconvenience of mobile phone repeater installation. Therefore, there is an immediate solution to amplify mobile phone signal in a small coverage, it is good choice to have one this portable repeater, without installation and carry - on. This is the necessary device in signal blind area of business trip, travelling, home and office etc.
3. Specifications:
|
specification |
Function condition |
||||
|
|
Uplink |
Downlink |
|||
|
Model |
Gmini |
Black |
890-915 |
935-960 |
|
|
Pass band ripple |
＜6.0dB |
||||
|
Max gain |
45±2dB |
||||
|
Gain Adjust Range |
43dB~47dB |
||||
|
Max Export power |
Uplink |
5±2dBm |
|||
|
|
Downlink |
5±2dBm |
|||
|
AGC |
Automatic gain adjustment range 20dB |
||||
|
Noise figure(reverse) |
<7dB(Max Gain) |
||||
|
Inter-Modulation Attenuation |
9KHz~1GHz ≤-36dBm @ 3KHz |
||||
|
|
1GHz~12.75GHz ≤-36dBm@ 3KHz |
||||
|
Out-of-band spurious emission
|
9KHz~1GHz ≤-36dBm @ 3KHz |
||||
|
|
1GHz~12.75GHz ≤-36dBm@ 3KHz |
||||
|
Transmission delay
|
<5us |
||||
|
VSWR |
<1:2 |
||||
|
Ambient temperature |
-10~+50℃ |
||||
|
Indicator |
ISO red(Isolation testing) |
||||
|
|
UP green(uplink power) |
||||
|
|
DN green(downlink power) |
||||
|
Power supply |
DC+5V |
||||
|
I/O Impedance |
50Ω |
||||
|
input/output connector |
Base station :SMA |
||||
|
|
|
||||
4. Feature Advantage:
1) Exquisite appearance: adopting disposable molding and injection appearance, beautiful as crafts, small size and easy - taking.
2) Powerful function: amplifying all kinds of mobile phone signal within 1-30 square meters and the best assistant for mobile phone communication.
5. Working Area:
Residential areas
Villas
All kinds of entertainments, e.g. KTV
Underground bar and coffee house
Small conference room
Signal blind spot of business trip, traveling, home and offices etc.
6. Package:
Main unit 1pc
Power supply 1pc
User manual 1pc
Quality certificate 1pc

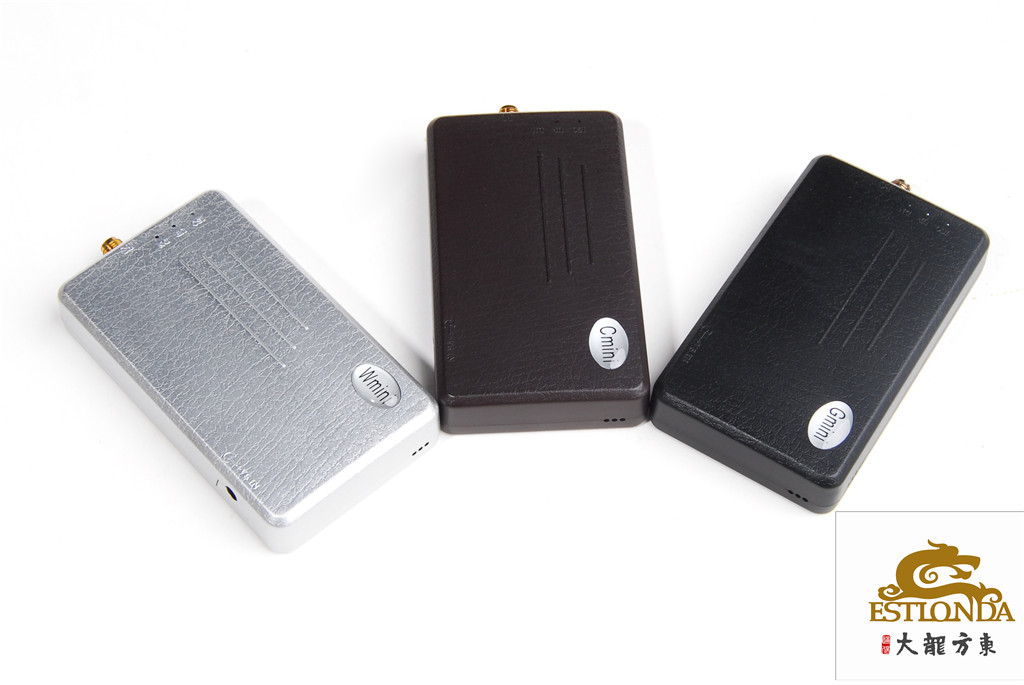

7. Picture
