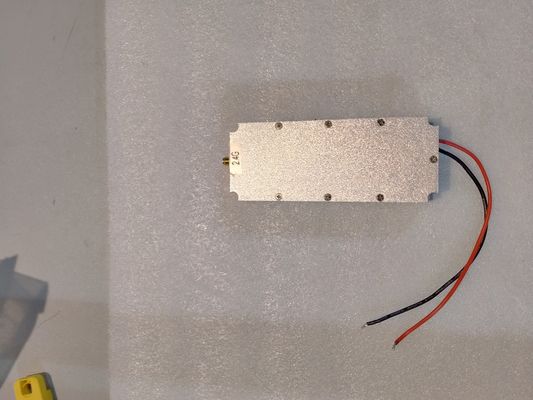

2.4G 5.8G GPS GNSS 433MHz Drone Jammer Module For UAV UAS
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Application | Drone Jammer(anti-drone Device/system), For Counter UAV / UAS Solution Development, Raw Material(internal Component) For Drone Jammers. | Function | Efficiently Generate & Amplify Drone Jamming Signals(high-power Electromagnetic Waves), To Intercept The Drone Control Signals, To Counter UAV / Drones |
|---|---|---|---|
| Frequency Band | WiFi 2.4G&5.8G, GNSS/GPS L1-L5, RC868/915/315/433, Etc. | Output Power | 2W-100W |
| Gain | 33dBm-50dBm | Power Supply | Feed Through Capacitor/AGR |
| Connector Type | N / SMA Connector | OEM | Available |
| High Light | 433MHz Drone Jammer Module,GNSS Drone Jammer Module,5.8G UAV UAS Jammer |
||
Product Description
EST Jammer(Eastlonge Electronics(HK) Co.,Ltd. - www.szeastlonge.com, since 2002), we're supporting our clients to develop their own counter UAV / C-UAS / anti-drone solutions, by supplying drone jammer modules(power amplifier) & antennas!
*The primary function of our drone jammer modules(power amplifier modules) is to efficiently generate & amplify drone jamming signals(high-power electromagnetic waves), to intercept the drone control signals, to counter UAV / drones.
*Customizable(Frequency: between 20MHz & 6000MHz, Output Power: between 2W & 100W), just need to advise the frequency and output power you need(eg. 2.4G 15W; 5.8G 20W), then we'll quote you asap:-)
| Product Name: |
Drone Jammer Module 2.4G 5.8G GPS GNSS 868 / 915 / 315 / 433MHz for Counter UAV / UAS Solution Development |
| Application: |
Drone Jammer(anti-drone device/system), for counter UAV / UAS solution development, raw material(internal component) for drone jammers. |
| MOQ: | 1 piece |
| Frequency: |
WiFi 2.4G: 2400-2500MHz WiFi 5.8G: 5700-5900MHz GNSS/GPS L1 / Galieo L1 / Glonass L1 / BD1-L / BD2-B1: 1550-1620MHz; RC868/915: 850-930MHz RC315: 310-320MHz RC433: 430-440MHz GPS L2+L5 / Galieo E5a+E5b / Glonass L2 / BD2-B2+B3: 1170-1230MHz; GPS L3+L4: 1350-1400MHz etc. |
| Output Power: | 33/37/40/43/45/47/50dBm (2/5/10/20/30/50/100W), customizable |
| Gain: | 33/37/40/43/45/47/50±1dB |
| VSWR: | ≤1.3 |
| Working Voltage: | DC27V (12-48V can be customized) |
| Connector Type: | N / SMA connector |
| Power supply interface: | DB9 |
| Working Temperature: | -40℃ ~ +55℃(output power stability: ±1dB) |
| Relative Humility: | ≤90%(RH) |
What we have produced:
1. RC868/915/GNSS/GPS L1-L5/WiFi 2.4G) 10W Jammer Module(Power Amplifier Module)
| Dimension:86*45.5*22mm/190g |
| Power Output:10W |
| Gain:40dBm |
| The bandwidth of each module cannot exceed 100MHz |
| Working Current :27V 1A |
| Connector Type:N / SMA connector |
| Power Supply:Feed Through Capacitor/AGR |
2. RC868/915/GNSS/GPS L1-L5/WiFi 2.4G) 30W Jammer Module(Power Amplifier Module)
| Dimension:122.8*48.5*25mm/220g |
| Power Output:30W |
| Gain:45dBm |
| The bandwidth of each module cannot exceed 100MHz |
| Working Current :27V 3A |
| Connector Type:N / SMA connector |
| Power Supply:Feed Through Capacitor/AGR |
3. 4W 5.8G(5700-5900MHz) Jammer Module(Power Amplifier Module)
| Dimension:86*45.5*22mm/190g |
| Power Output:4W |
| Gain:36dBm |
| Working Current :27V 1A |
| Connector Type:N / SMA connector |
| Power Supply:Feed Through Capacitor/AGR |
Please Note:
Our 4W(or 5W) 5.8G jammer module is composed of two pieces of 2W circuit boards (based on 2x SE5004L), so the actual measured output power may only be about 33dbm(2W), you must to know this before placing an order!!
4. 10W 5.8G(5700-5900MHz) Jammer Module(Power Amplifier Module)
| Dimension:131*29.7*15.5mm/260g |
| Power Output:10W |
| Gain:40dBm |
| Working Current :27V1.1A |
| Connector Type:N / SMA connector |
| Power Supply:Feed Through Capacitor/AGR |
5. 20W/30W 5.8G(5700-5900MHz) Jammer Module (Power Amplifier Module)
| Dimension:125*60*21.5mm/400g |
| Power Output:20W |
| Gain:43dBm/45dBm |
| Working Current :27V1.2A/2.8A |
| Connector Type:N / SMA connector |
| Power Supply:Feed Through Capacitor/AGR |
6. 10W RC315/433 Jammer Module(Power Amplifier Module)
| Dimension:115*46.5*22mm/320g |
| Power Output:10W |
| Gain:40dBm |
| The bandwidth of each module cannot exceed 70MHz(for HF/FM..., usually cannot exceed 30MHz) |
| Working Current :27V1.5A |
| Connector Type:N / SMA connector |
| Power Supply:Feed Through Capacitor/AGR |
Feature
* Our module features a highly thermal aluminum housing (case) and surface blasting. We use the most high-quality components, to ensure sufficient power, stable and reliable performance, long service life.
* With high-efficiency sweep frequency interference source, sweep frequency cycle is 110khz, which greatly improves the monitoring sensitivity of the product, the central frequency and bandwidth can be adjusted by yourself with professional instruments(such as spectrum analyzer / power meter / attenuator...).
Note
* Please power on the module after connecting to antenna, otherwise the module might be damaged.
* Please make sure the power supply voltage is within the allowable range.
* Jammer module is RF product, please be sure that you know the specific function and usage of our jammer modules before using it.
FOR MORE DETAILS, PLEASE CONTACT ME VIA WHATSAPP +86 134 1856 8064 OR EMAILL amy@szeastlonge.com
