TD4520 Vehicle Mounted 4G LTE 5G NR Signal Detection Analysis Device

Place of Origin CHINA
Brand Name EST
Model Number TD4520
Minimum Order Quantity 1pc
Packaging Details neutral packing
Delivery Time 4-8 working days
Payment Terms 100% before shipment, Western Union, T/T
Supply Ability 500pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Working Mode DW Working Standard TDD, FDD
Carrier No. NR: 2 Channels, 4 Channels LTE: 4 Channels, 6 Channels Output Power About 20W (43±1dBm)
Power Supply Car Charger Or DC 48V 10A (optional) Dimension 2U Outer Case 430*500*89mm
High Light

cell phone signal finder


mobile phone signal detector

Leave a Message
Product Description

TD4520 Vehicle Mounted 4G LTE 5G NR Signal Detection Analysis Device



1. Introduction


4G and 5G vehicle signal detection equipment is a special equipment designed to meet the needs of public inspection. By collecting the air interface information of wireless signals, decoding and analyzing, checking and locking the target, inducing it to continue synchronous connection, cooperating with digital individual soldiers, and finally determining its specific location.



2. Applications


Often used in the fields of law enforcement, intelligence collection and security monitoring.

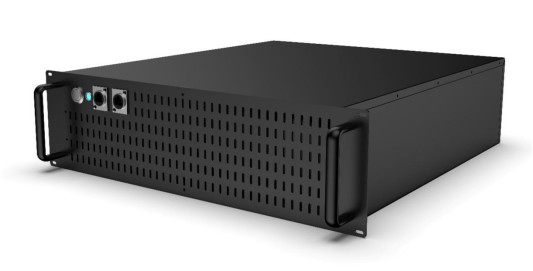

TD4520 Vehicle Mounted 4G LTE 5G NR Signal Detection Analysis Device 0


3. Features


3.1 Frame code principle: By collecting the air interface information of wireless signals, decoding and analyzing, checking and locking the target, inducing it to continue to synchronize the connection, cooperating with the digital soldier, and finally determining its specific position;

3.2 Strong concealment: the host of the vehicle equipment is generally fixed in the tail box of the SUV vehicle, and the antenna is disguised in the roof luggage rack. Operate with Pad or computer or smart phone through wireless connection, gradually approach the target after login, and finally lock the position with digital individual soldiers on foot after stabilization;

3.3 Strong scalability: vehicle equipment can expand 2G/3G/4G coding equipment according to demand, and can also be used with passive equipment;

3.4 Strong compatibility: The equipment supports all frequency bands of FDD and TDD, and supports all mainstream models on the market. It has been tested in more than 100 major cities and districts in the country, with excellent response, and has become the benchmark of the industry;

3.5 Code detection function: It can capture the IMSI of LTE and 5G NR mobile terminals within the coverage range of the code detector signal, and statistically analyze the IMSI of the target according to the obtained results several times;

3.6 Positioning function: When the target IMSI is known, DW is performed on the specific target in the LTE and 5G NR network, so that the target can register with our device, induce it to report the location, and DW can be performed on the target by continuous approximation without individual soldiers;

3.7 Dedicated full Netcom mold machine, high-power silent fan, ensure continuous heat dissipation effect, high performance, high stability power supply solution, durable, dual channel four carrier, or four channel eight carrier (optional), with special soldiers, can be accurate to within 0.5 meters.

3.8 Query function: During the positioning process, the code data can be queried, saved and analyzed;

3.9 Obtain and Configure Public Network Parameters by Yourself: Obtain and configure optimal public network parameters by yourself when a full-network module device is installed.



4. Technical Data


Working Standard TDD, FDD
Working Frequency NR: N1/28/41/78/N79 LTE:B1/3/5/8/34/38/39/40/41
Working Mode DW
Carrier No. NR: 2 channels, 4 channels LTE: 4 channels, 6 channels
Output Power About 20W (43±1dBm)
Power Supply car charger or DC 48V 10A (optional)
Power Consumption about 200W
Synchronous Mode GPS synchronization
Working Environment -20℃~50℃
Working Platform based on android system molding machine
Dimension 2U Outer Case 430*500*89mm
Working Mode with 4G 5G for vehicle use
Working Frequency NR: N1/28/41/78/N79 LTE: B1/3/5/8/34/38/39/40/41
Antenna Gain antenna integrated, about 6~9dbi (N28 antenna needs external connection)
Battery built-in battery (about 3-4 hours)
Synchronous Mode GPS synchronization (air punctuality)
Working Environment -20℃~50℃
Dimension / Weight 99*202*55mm about 1165g

5. Packing List


1pc x Vehicle Signal Detection Device Host

1pc x Supporting Individual

1pc x USB Cable

1pc x Charger
