TW4510 4G LTE 5G NR Signal hotspot Device For Public Security Use

Place of Origin CHINA
Brand Name EST
Certification CE&ROHS
Model Number TW4510
Minimum Order Quantity 1PC
Packaging Details neutral packing
Delivery Time 1-3 working days
Payment Terms 100% before shipment
Supply Ability 500pcs/week/C

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Synchronous Mode Air Interface Synchronization, GPS Synchronization Data Acquisition IMSI
Power Supply AC 220V Power Consumption 150W
Protection Level IP65 Working Temperature -40℃~55℃
High Light

NR Signal Hotspot Device


5G Signal Hotspot Device

Leave a Message
Product Description

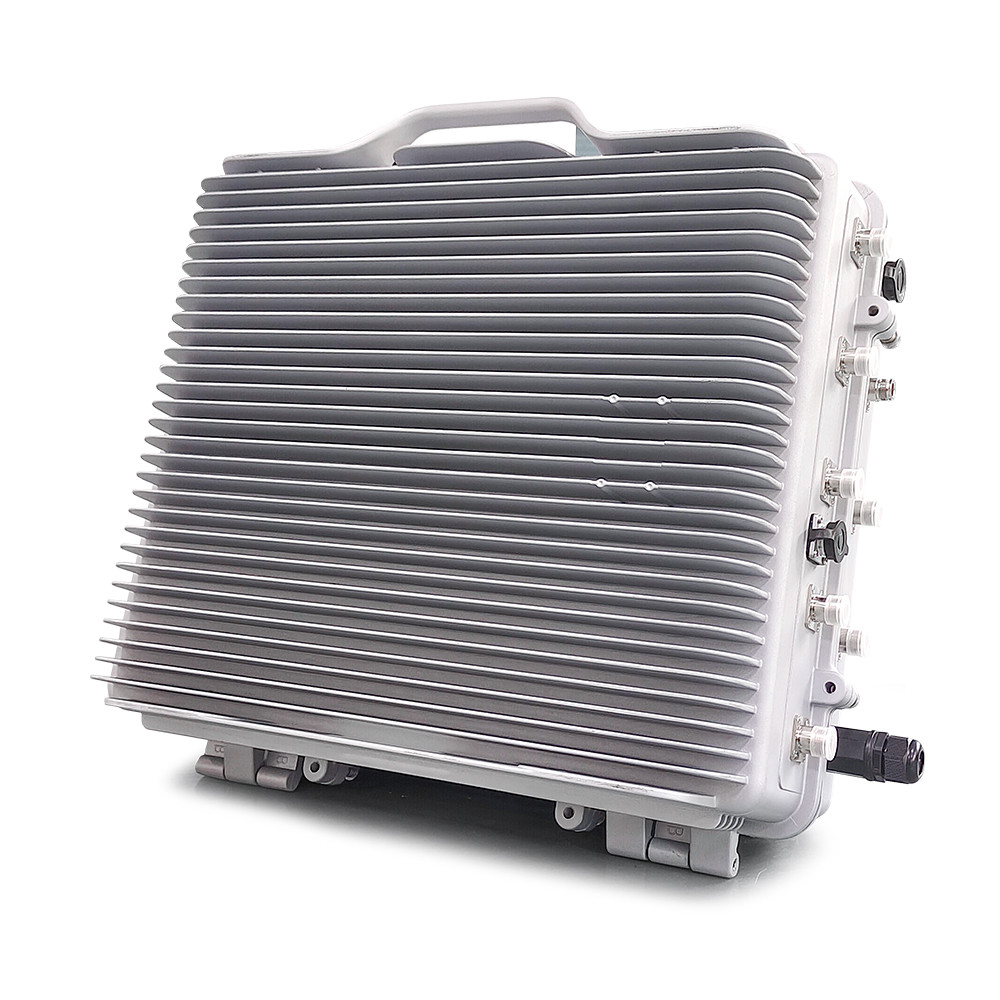

TW4510 4G LTE 5G NR Signal Hot-spot Device for Public Security use



1. Introduction

The 4G 5G signal hot-spot device provides important and powerful clues for the handling of public security organs' cases by collecting mobile phone characteristic information, realizing the screening of useful information resources in the massive flow of people and the analysis and judgment of relevant data. Support IMSI information collection for mobile, Unicom, telecom, radio and television 4G, 5G standard mobile phones. It can realize the simultaneous operation of four kinds of carriers, TDD-LTE, FDD-LTE, NR-TDD and NR-FDD.

With integrated product settings, the use of sealing industry standards, carrier-grade material, the whole machine has a good natural heat dissipation capacity.


2. Applications

Highway bayonet, toll station, entrance and exit city bayonet, traffic hub square, traffic arteries, stations, docks, important parts of the city and other people, traffic flow of large mobility area.

TW4510 4G LTE 5G NR Signal hotspot Device For Public Security Use 0


3. Features

3.1 Support 4G and 5G bands of four major operators, support TDD-LTE, FDD-LTE, NR-TDD and NR-FDD four standards.

3.2 Support regional mobile phone detection code, real-time access to IMSI and other mobile phone information.

3.3 Support multi-carrier simultaneous operation, 5G 2 carrier and 4G 2 carrier a total of 4 frequency concurrent processing.

3.4 Built-in GPS antenna, high-gain directional antenna, high integration, less external interface, convenient construction.

3.5 Support black and white list, key target monitoring and accompanying analysis and other data analysis functions.

3.6 Background Data management function to display and store the reported data in real time.


4. Technical Data


Working Frequency

4 channels (2 of 4G and 2 of 5G work together)

B40: 2300-2400MHz, B1: 1925-1980/2115-2170MHz, N41: 2515-2675MHz, N78: 3300-3600MHz

Output Power 4G: 10W/carrier 5G: 10W/carrier
Coverage 500 meters (related to macro mesh environment)
Carrier Combination real-time 4 carrier (frequency can be flexibly configured according to the field environment)
Capture Peak Rate 5G:1000 sets/min/carrier 4G: 2000 sets/min/carrier
Net Return Time <2S
Synchronous Mode air interface synchronization, GPS synchronization
Data Acquisition IMSI
Working Temperature -40℃~55℃
Power Supply AC 220V
Power Consumption 150W
Dimension 500mm(L)×449mm(W)×235mm(H)
Weight about 36 kg
Protection Level IP65
Antenna external directional antennas

5. Packing List

1pc x Signal Hot-spot Host

1pc x Power Cable

2pcs x Coxical Cable

1pc x User Manual

1set x Directional Antenna

1pc x GPS Antenna

1pc x WIFI Antenna

1pc x Network Cable
