Passive 5G NR Mobile Phone Signals Detection Analysis For Target Capture And Positioning

TZ501-B1 Passive 5G NR Mobile Phone Signals Detection Analysis for Target Capture and Positioning

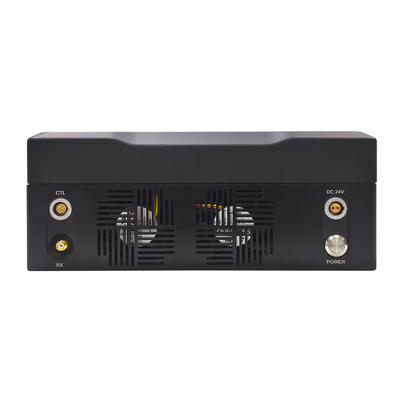

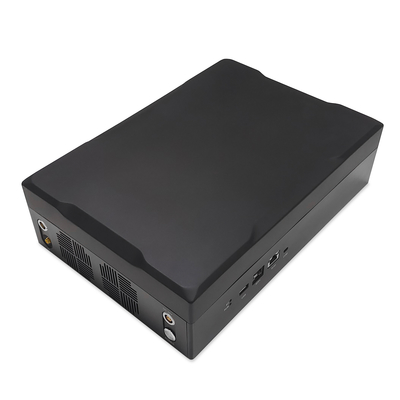

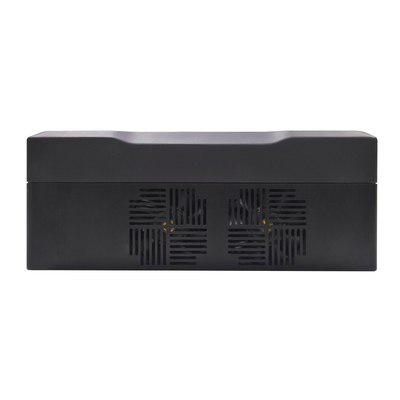

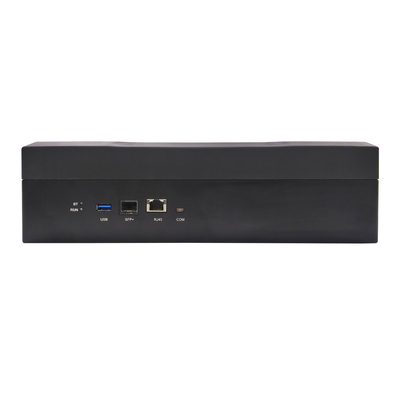

5G Portable Detector is a passive 5G NR mobile phone detection device. The device does not transmit signals, but adopts the work mode of third-party detection to achieve the target mobile phone signal capture and accurate positioning.

1. Functions:

1.1 The equipment is completely independent work, pure passive detection.

1.2 Capture Condition: mobile phone number.

1.3 Cell Search and Scan: scan the base station cell under 5G SA network environment, obtain cell parameter information, and select the cell for control and guard.

1.4 High equipment integration, providing support to four major operators without hardware replacement, supporting 5G NR TDD and FDD system.

1.5 Target Positioning: provide the approximate reference distance of the target, and provide the real energy value of the target; Three gain modes of low, medium and high gain are provided to display the signal strength values of different distances from the target more accurately and locate the target more accurately.

1.6 Trigger Mode: non-inductive SMS trigger.

1.7 Data Transmission: support multiple devices through data transmission signals to capture the target number;

1.8 Target On/Off Detection: providing target startup SMS notification function.

1.9 Black Box: the device supports the black box recording function.

2. Technical Data:
