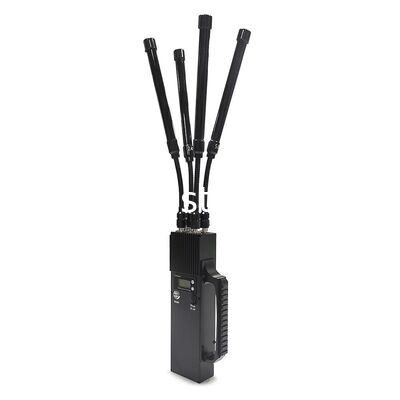

Small Portable 4 Channels Drone UAV Jammer Incorporating Jamming Range 50-500 Meters Technology for UAV Threat Mitigation
Product Details
| Dimension | 128x52x291mm Not Include Antennas | Weight | 2.5Kg |
|---|---|---|---|
| Single Channel Output Power | 5-10W | Jamming Range | 50-500 Meters (depends On The Final Shape) |
| Maximum Power Consumption | 150W (depends On The Final Shape) | Antenna Type | High Gain Omni Spring Antennas |
| Jamming Methods | Forced Return, Hover And Signal Scramble | Application | FPV Drones, And Other Kinds Of Anti-drone Device/system |
| Highlight | small portable drone jammer,4 channels UAV jammer,500 meter range drone jammer |
||
Product Description
Small Portable 4 Channels Drone UAV Jammer
Advanced anti-drone system with 50-500 meter jamming range for effective UAV threat mitigation
Product Overview
The Drone UAV Jammer is an advanced Anti Drone System designed to provide reliable protection against unauthorized drone intrusions. Engineered with cutting-edge technology, this system offers comprehensive jamming capabilities for securing sensitive areas, critical infrastructure, and public events.
Five Jamming Modes
Adaptable to various drone types and operational environments
Adaptable to various drone types and operational environments
Flexible Antenna Options
High gain omni-directional and directional panel antennas
High gain omni-directional and directional panel antennas
Vehicle Mounted Design
Compact dimensions for easy integration and mobile deployment
Compact dimensions for easy integration and mobile deployment
Key Features
- Compact size and easy to carry
- Individual band control without affecting other bands
- Rechargeable powerful battery for outdoor use
- Advanced cooling system for extended operation
- Vehicle-compatible with car charger for mobile deployment
- Supports use while battery charging
- Jams multiple drone signals simultaneously (GPS/RF/WiFi)
- High gain omni fiber glass antennas with spring design
- High strength metal shell for durability
- Completely cuts off contact between drone and controller
- Prevents transmission of aerial photography data
- Forces drone to land, return, or hover
Technical Specifications
| Available Systems | Analog (AMPS, TACS, NMT) and UAV signals (GNSS, WiFi, remote control) |
| Single Channel Output Power | 10Watt |
| Jamming Target | UAV flying below 500 meters |
| Antenna Type | 3dbi high gain omni-directional antenna |
| Power Supply | Rechargeable lithium Battery / AC adapter (100-240V AC) / 24V car charger |
| Battery Capacity | 5200mAh |
| Working Time | 1-2 Hours |
| Intercept Methods | Forced return, forced landing, hovering, image transmission interference |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -40°C to +60°C |
| Dimensions | 128x52x291mm (excluding antennas) |
| Weight | 2.5kg |
Frequency Information
| Band | Frequency Range | Power |
|---|---|---|
| 433M | 400-470MHz | 10W |
| 700M | 650-800MHz | 10W |
| 900M | 830-950MHz | 10W |
| 2.4G | 2400-2500MHz | 10W |
| Total Output Power | 40W | |
Applications
The EST Drone UAV Jammer series provides cutting-edge solutions for controlling unauthorized drone activity in various critical scenarios:
- High-Security Events: Government summits, political rallies, and VIP protection
- Critical Infrastructure: Power plants, airports, and military bases
- Private Property Protection: Preventing unauthorized drone filming and spying
- Public Safety: Securing public events and crowded areas
Customization Options
The EST-710/750/700 series offers flexible customization to meet specific operational requirements:
- Jamming Radius: 100 to 2000 meters (depending on final configuration)
- Jamming Modes: 5 different modes including forced return, hover, and signal scramble
- Output Power: 40 to 700W (customized to specifications)
- Dimensions: Approximately 390x340x60mm (final shape dependent)
- Minimum Order: 1 set with neutral packaging
- Supply Capacity: 800 units per week
- Delivery Time: 3 to 15 days
