14 Channels Vehicle Magnetic Mounted Anti Drone Defense System Powered by AC 220V DC 24V Counter Drone FPV for Enhanced Security Measures
Product Details
| Dimensions | L 603mm X W 445mm X H 455mm | Antenna Type | High Gain Omni Spring Antennas / Directional Panel Antennas |
|---|---|---|---|
| Jamming Range | 100-2000 Meters (depends On The Final Shape) | Application | FPV Drones, And Other Kinds Of Anti-drone Device/system |
| Jamming Methods | Forced Return, Hover And Signal Scramble | Heat Assumption | Air Cooling |
| Total Output Power | 700-800W (depends On The Final Shape) | Weight | 38Kg |
| Highlight | 14 channel anti drone defense system,magnetic mounted drone jammer,AC 220V DC 24V counter drone |
||
Product Description

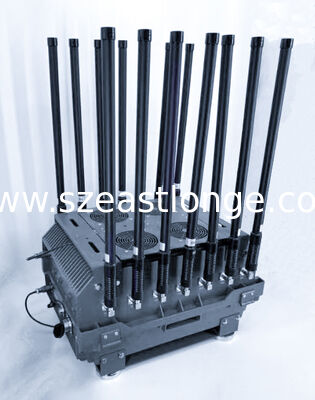

14 Channels Vehicle Magnetic Mounted Anti Drone Defense System
Product Overview
The EST-750C14 Drone UAV Jammer is an advanced counter-drone system designed to provide secure airspace protection against unauthorized drone activity. With total output power ranging between 700-800 watts, this device delivers robust signal disruption capabilities essential for modern security operations.
Utilizing sophisticated jamming methods including Forced Return, Hover, and Signal Scramble, this system provides comprehensive control over unwanted drones by either forcing them to return to their origin point, causing them to hover in place, or scrambling their communication signals entirely.
The compact design (603mm × 445mm × 455mm) enables easy deployment and integration into various operational environments. The integrated air cooling system ensures efficient heat dissipation during prolonged use, maintaining optimal functionality in demanding scenarios.
Key Features
- Jams multiple drone signals simultaneously: GPS, RF, WiFi across 14 frequency bands
- Remote handle with individual channel ON/OFF switching capability
- High power output: 50-80W per channel, total approximately 800W
- Strong magnetic wire rope base for stable vehicle roof mounting
- 90° elbow connectors for direct antenna installation
- Magnetic extension sticks (3m cable) for optimal antenna placement
- Dual power supply: AC 220V and DC 24V for indoor/outdoor use
- Completely disrupts drone-controller communication
- Blocks aerial photography video transmission
- Forces drone landing or return to origin
- High-strength brushed aluminum alloy shell
- Effective against FPV drones and various drone types
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Bands | 14 bands: 100-200MHz, 200-300MHz, 300-400MHz, 400-550MHz, 650-850MHz, 850-950MHz, 950-1100MHz, 1100-1300MHz, 1300-1500MHz, 2400-2600MHz, 3300-3500MHz, 5100-5300MHz, 5700-5900MHz, 5900-6050MHz |
| Output Power | 47dBm / 50W per channel (total ~800W) |
| Antennas | 14 omnidirectional antennas with spring (2 directional antennas optional) |
| Control Distance | ≤1500 meters (dependent on signal strength in area) |
| Weight | Approximately 38 kg (excluding antennas and accessories) |
| Dimensions | 603mm (L) × 445mm (W) × 455mm (H) |
| Power Supply | AC 220V (5m cable) and External DC 24V (3m cable) |
| Jamming Methods | Forced return, forced landing, hovering, image transmission interference |
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -20°C to +60°C |
| Relative Humidity | ≤90% (RH) |
| Air Pressure | 86-106kPa |
Applications
The EST-750C14 is ideal for protecting sensitive locations including government buildings, military bases, airports, and critical infrastructure where unauthorized drone activity poses security risks. Its vehicle-mounted capability enables mobile deployment for rapid response to drone incursions.
Additional applications include public events, stadiums, large gatherings, and urban security scenarios where crowd protection from drone-related disturbances is essential. The system effectively functions as a GPS RC Drone Interrupter, disrupting communication between drones and their operators.
Frequently Asked Questions
What is the brand and model number of this Drone UAV Jammer?
The Drone UAV Jammer is from the brand EST and the model number is EST-750C14.
Where is the EST-750C14 Drone UAV Jammer manufactured?
The EST-750C14 Drone UAV Jammer is manufactured in China.
What is the minimum order quantity for the EST-750C14 Drone UAV Jammer?
The minimum order quantity for this product is 1 set.
How is the EST-750C14 Drone UAV Jammer packaged for delivery?
The product is packaged in neutral packing to ensure safe delivery.
What is the typical delivery time and supply capacity for the EST-750C14 Drone UAV Jammer?
The delivery time ranges from 3 to 15 days, and the supply ability is 800 pieces per week.
