TD4501 Portable Mobile Signal Detection Analysis 4G LTE 5G NR 4 Channels

Place of Origin CHINA
Brand Name EST
Model Number TD4501
Minimum Order Quantity 1pc
Packaging Details neutral packing
Delivery Time 3-7 working days
Payment Terms 50% deposit before mass production, balance before shipment, Western Union, PayPal, T/T
Supply Ability 500pcs/week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name 4G&5G Portable Signal Detection Analysis Communication Mode WIFI, Connect To Any Android Phone Through The App
Working Channels 4 Channels PA Output Power 1W Standard (can Be Adjusted By Software)
Antenna Gain About 10db (angle: 35 Degree) Dimension 297*210*40mm
Weight About 2 Kg
High Light

Signal Detection Analysis ODM


4G LTE Signal Detection Analysis


5G NR Signal Detection Analysis

Leave a Message
Product Description

TD4501 4G LTE & 5G NR Portable Mobile Signal Detection Analysis



1. Introduction


4G and 5G portable signal detection equipment is a special device designed to meet customer needs, using a dedicated physical layer and protocol stack, professional handheld terminal control. Conduct code detection and analysis for mobile terminals, and support the existing LTE and NR deployed network bands.


2. Applications


Large Shopping Malls: fast speed, accurate DW, unique RSRP algorithm, DW accuracy up to 0.5M, accurate DW traffic complex places.

Human-vehicle Distribution Cell: the Angle is more concentrated than the traditional antenna, accurate DW unit floor of the complex cell, supporting DW in the basement without signal.

Open Environment: the linear distance can reach 100 meters, and the direction is clear.

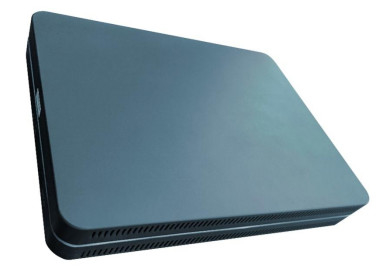

TD4501 Portable Mobile Signal Detection Analysis 4G LTE 5G NR 4 Channels 0


3. Features


3.1 4G/5G supports dual channels, covering all current frequency bands.

3.2 High performance, high stability power supply solution, durable.

3.3 High-power silent fan to ensure continuous heat dissipation.

3.4 The direction is obvious, can be accurate to 0.5 meters, with special individual soldier report value precision.

3.5 Code Detection function: It can capture the IMSI of LTE and 5G NR mobile terminals within the coverage range of the code detector signal, and can statistically analyze the IMSI of the target according to the obtained results.

3.6 Positioning function: When the IMSI of the target is known, DW is performed on the specific target in the LTE and 5G NR network, so that the target can register with our device, induce it to report the location, and DW can be performed on the target by continuous approximation without individual soldiers.

3.7 Search Range: 1) Open distance of about 100 meters; 2) High-rise buildings about 10-20 floors (depending on the public network environment, for reference only).

3.8 Query function: During locating, you can query, save, and analyze the code data.

3.9 Obtain and Configure Public Network Parameters by yourself: obtain and configure optimal public network parameters by yourself when a full-network module device is installed.


4. Technical Data


Communication Mode WIFI, connect to any Android phone through the app
Dimension 297*210*40mm
Weight about 2 kg
Working Standard NR: TDD, FDD
Working Frequency

LTE: B1, B3, B5, B8, B34, B39, B40, B41

NR: N1, N28, N41, N78, N79

(LTE and NR can’t be turned ON together)

Working Channels 4 channels (2 channels of 4G LTE and 2 channels of 5G NR work together)
Working Mode frequency sweep, code detection, DW
Synchronous Mode air interface synchronization, GPS synchronization
PA Output Power 1W standard (can be adjusted by software)
Antenna Gain about 10db (angle: 35 degree)
Battery powered by power bank
Working Platform Android phones
Working Environment -20℃~50℃

5. Packing List


1pc x Detector Host

1pc x Battery

1pc x Power Cable

1pc x Charger

1pc x Bag
